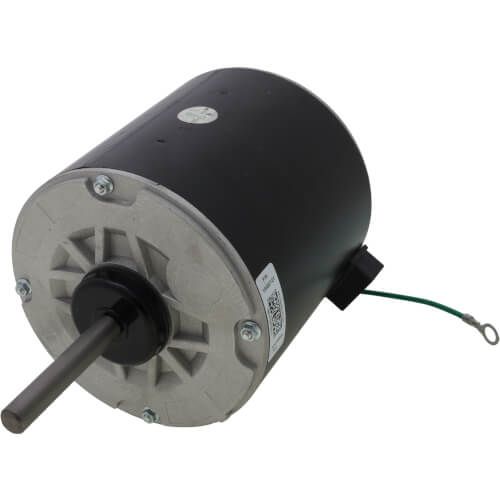

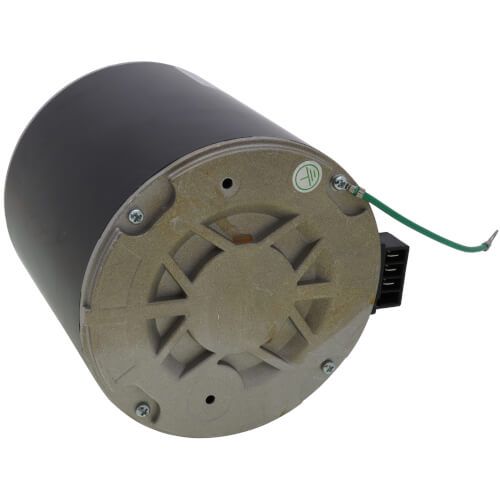

Lennox 14Y65 (104607-01) - Condenser Fan Motor, 1/3 HP, 1075 RPM, 208-230V, 48 Fr, CCWLE

Brand:
Reviews (0)
SKU
14Y65

Lennox 14Y65 (104607-01) - Condenser Fan Motor, 1/3 HP, 1075 RPM, 208-230V, 48 Fr, CCWLE

SKU
14Y65
Brand:
Reviews (0)
$132.60
Out of stock

(special order is available)

The Lennox 14Y65 condenser fan motor is a genuine OEM replacement designed to maintain optimal performance in Lennox HVAC systems. Engineered for durability and efficiency, this motor ensures reliable operation in residential and light commercial applications.
Key Specifications:
Brand
Lennox
Catalog Number
14Y65
Model/Part Number
104607-01
Base Unit of Measure
Unit(S)
Material Description
104607-01 CONDENSER FAN MOTOR
EAN / UPC
66255150655
Horsepower
1/3 HP
Type
PSC
Gross Weight
12 LB
Amperage (AMPs)
1.65A
Bearing Type
Ball
Hertz
60 hz
Phase
1 Phase
Shaft Length
3.4
Core Product
No
Motor Type
PSC
RPM
1075 RPM
Motor HP
1/3 HP
Number of Speeds
1 Speed
Frame Size
48
Motor Mounting Position
Vertical
Motor Mounting Type
Belly Band
Motor Voltage
208-230 VAC 1 Ph 60 Hz
Shaft Size
1/2 x 3.4 IN
Capacitor Value
10 MFD 370 VAC
Rotation
CCWLE
Bearing Type
Ball
Speed1

This motor is thermally protected and designed for continuous duty, ensuring long-lasting performance. It's compatible with various Lennox models, including LGH092H4H1Y, LGH180H4BH1Y, and LGH240H4MS3Y, among others .
Ordering Information:
Available through authorized distributors such as LennoxPros , WebstaurantStore , and Voomi Supply . Pricing varies by vendor and availability.
Note: For optimal performance and to prevent premature motor failure, it's recommended to replace the capacitor when installing a new motor.
If you need assistance finding the correct capacitor or verifying compatibility with your HVAC system, feel free to ask!
