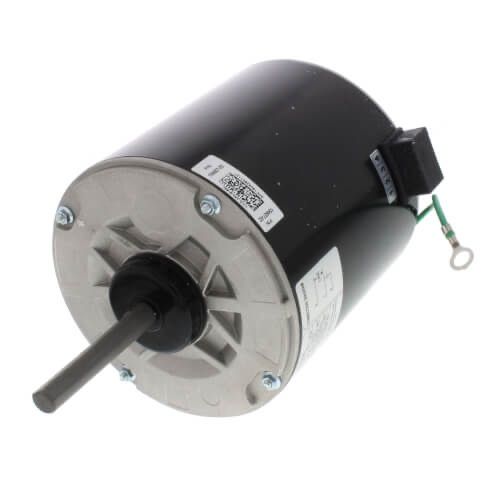

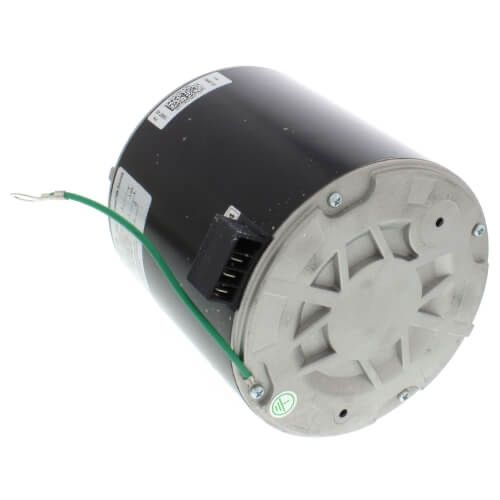

Lennox 14Y70 - ( 104607-02 ) Condenser Fan Motor, 1/3 HP, 1075 RPM, 380/460V-1Ph, 50/60 Hz, 48 Fr, CCWLE
Lennox 14Y70 - ( 104607-02 ) Condenser Fan Motor, 1/3 HP, 1075 RPM, 380/460V-1Ph, 50/60 Hz, 48 Fr, CCWLE
Brand: Lennox
Catalog Number: 14Y70
Model/Part Number: 104607-02
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(S)
Material Description: 104607-02 Condenser Fan Motor, 1/3 HP, 1075 RPM, 380/460V, 50/60 Hz
Horsepower: 1/3 HP
Type: PSC
Gross Weight: 16 LB
Amperage (AMPs): 1.1/0.8A
Bearing Type: Ball
Hertz: 50/60 hz
Phase: 1 Phase
Shaft Length: 3.4
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/3 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Belly Band
Motor Voltage: 380-460 VAC 1 Ph 50/60 Hz
Shaft Size: 1/2 x 3.4 IN
Capacitor Value: 15 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Ball
Speed: 1
Ensure optimal cooling system performance with the Lennox 14Y70 (104607-02) Condenser Fan Motor, a high-quality OEM replacement motor designed specifically for Lennox HVAC units. This reliable motor delivers consistent airflow across the condenser coil, helping maintain system efficiency and prevent overheating during peak operation.
Engineered for durability and smooth performance, the 14Y70 features precision-balanced components, dependable construction, and easy compatibility with select Lennox models. Whether you’re replacing a worn-out unit or performing preventive maintenance, this condenser fan motor supports long-term HVAC reliability and energy efficiency.
Key Features:
Genuine Lennox OEM part for assured compatibility
Helps maintain proper condenser cooling
Sturdy construction for long-term operation
Ideal for residential and light commercial applications
Count on Beenimax.com to provide quality HVAC parts like the Lennox 14Y70 condenser fan motor—trusted by contractors, backed by fast shipping and dependable service.
