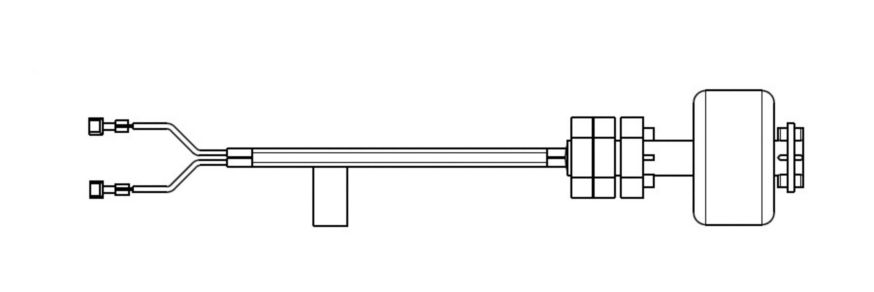

The Lennox 15X61 float switch (part number 613727-01) is a normally closed safety switch designed to help prevent condensate overflow and potential water damage in HVAC systems. When condensate levels rise beyond a safe point, the switch opens the control circuit to shut down system operation. This component is commonly used in air handlers, fan coils, and condensate management applications where dependable overflow protection is required.

Rated for 150 VAC at 1 amp, this float switch provides reliable electrical performance and is suitable for low-voltage and control circuit applications. Using a genuine Lennox float switch helps maintain system safety, protects surrounding property, and supports proper HVAC operation.



Specifications:

Manufacturer: Lennox
Part Number: 15X61
Alternate / OEM Number: 613727-01
Product Type: Float Switch
Switch Type: Normally Closed
Electrical Rating: 150 VAC, 1 Amp
Application: Condensate overflow protection
Compatibility: Select Lennox air handlers and HVAC systems
