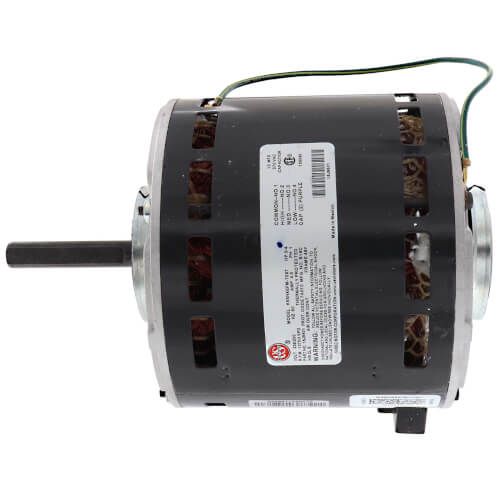

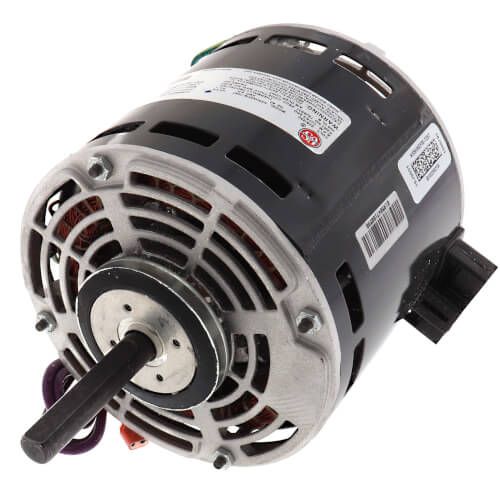

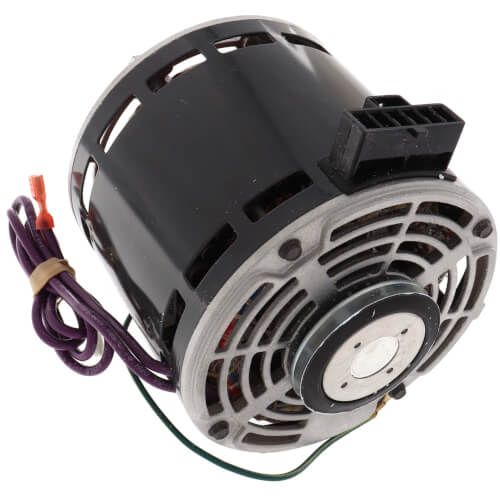

Lennox 18J96 - Blower Motor, 3/4 HP, 208/230V-1Ph, 3 Speed, 60 Hz, 1075 RPM

Brand:
Reviews (0)
SKU
18J96
Lennox 18J96 - Blower Motor, 3/4 HP, 208/230V-1Ph, 3 Speed, 60 Hz, 1075 RPM
Lennox 18J96 - Blower Motor, 3/4 HP, 208/230V-1Ph, 3 Speed, 60 Hz, 1075 RPM
Lennox 18J96 - Blower Motor, 3/4 HP, 208/230V-1Ph, 3 Speed, 60 Hz, 1075 RPM
Lennox 18J96 - Blower Motor, 3/4 HP, 208/230V-1Ph, 3 Speed, 60 Hz, 1075 RPM
Lennox 18J96 - Blower Motor, 3/4 HP, 208/230V-1Ph, 3 Speed, 60 Hz, 1075 RPM
Lennox 18J96 - Blower Motor, 3/4 HP, 208/230V-1Ph, 3 Speed, 60 Hz, 1075 RPM

Lennox 18J96 - Blower Motor, 3/4 HP, 208/230V-1Ph, 3 Speed, 60 Hz, 1075 RPM

SKU
18J96
Brand:
Reviews (0)
$240.50
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Brand: Lennox
Base Unit of Measure: Unit(S)
Material Description: Lennox 18J9601 Fan Motor, 3/4HP, 3 Speed, 208-230 Volts, 60 Hz, 1075 RPM
Horsepower: 3/4 HP
RPM Range: 1075
Gross Weight: 18.05 LB
Hertz: 60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 3/4 HP
Number of Speeds: 3 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Hub Rings
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 2.5 IN
Capacitor Value: 10 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Motor Type: PSC
Rotation: CCW/OSE
Speed: 3
Lennox 18J96 - Blower Motor, 3/4 HP, 208/230V, 1-Phase, 3-Speed, 60 Hz, 1075 RPM
The Lennox 18J96 blower motor is a direct replacement motor engineered for use in Lennox residential and light commercial HVAC systems. With a 3/4 horsepower output and 3-speed operation, this motor delivers precise and efficient airflow control, ensuring optimal comfort across heating and cooling modes.

Technical Specifications:
  • Horsepower: 3/4 HP
  • Voltage: 208/230V
  • Phase: Single-phase
  • Speeds: 3-speed motor for flexible airflow tuning
  • Frequency: 60 Hz
  • Rotation: Typically CCW (counter-clockwise) facing the shaft (confirm with OEM documentation)
  • RPM: 1075 RPM
  • Mounting: Belly band or resilient base (check unit compatibility)
  • Application: Designed for use in Lennox air handlers, furnaces, and packaged systems
Features & Benefits:
  • High-Efficiency Performance: Optimized motor windings reduce energy consumption without sacrificing torque or airflow.
  • Quiet Operation: Balanced rotor and precision bearings reduce vibration and noise for quieter HVAC system operation.
  • Durability: Built with thermally protected windings and heavy-duty materials to ensure long-term reliability in demanding environments.
  • Versatile Compatibility: Works in various Lennox models; ideal for systems requiring a multi-speed 3/4 HP blower motor at 208/230V.
Common Applications:
  • Lennox central air handlers
  • Gas and electric furnaces
  • Packaged HVAC units
  • Multi-stage systems requiring speed flexibility
Why Choose Beenimax.com?
We offer genuine Lennox replacement parts like the 18J96 motor with quick shipping and competitive pricing. Every product is backed by knowledgeable support and a commitment to your HVAC success.
More Information
More Information
Package Quantity1 Item
Item ReturnsThis item can be returned
