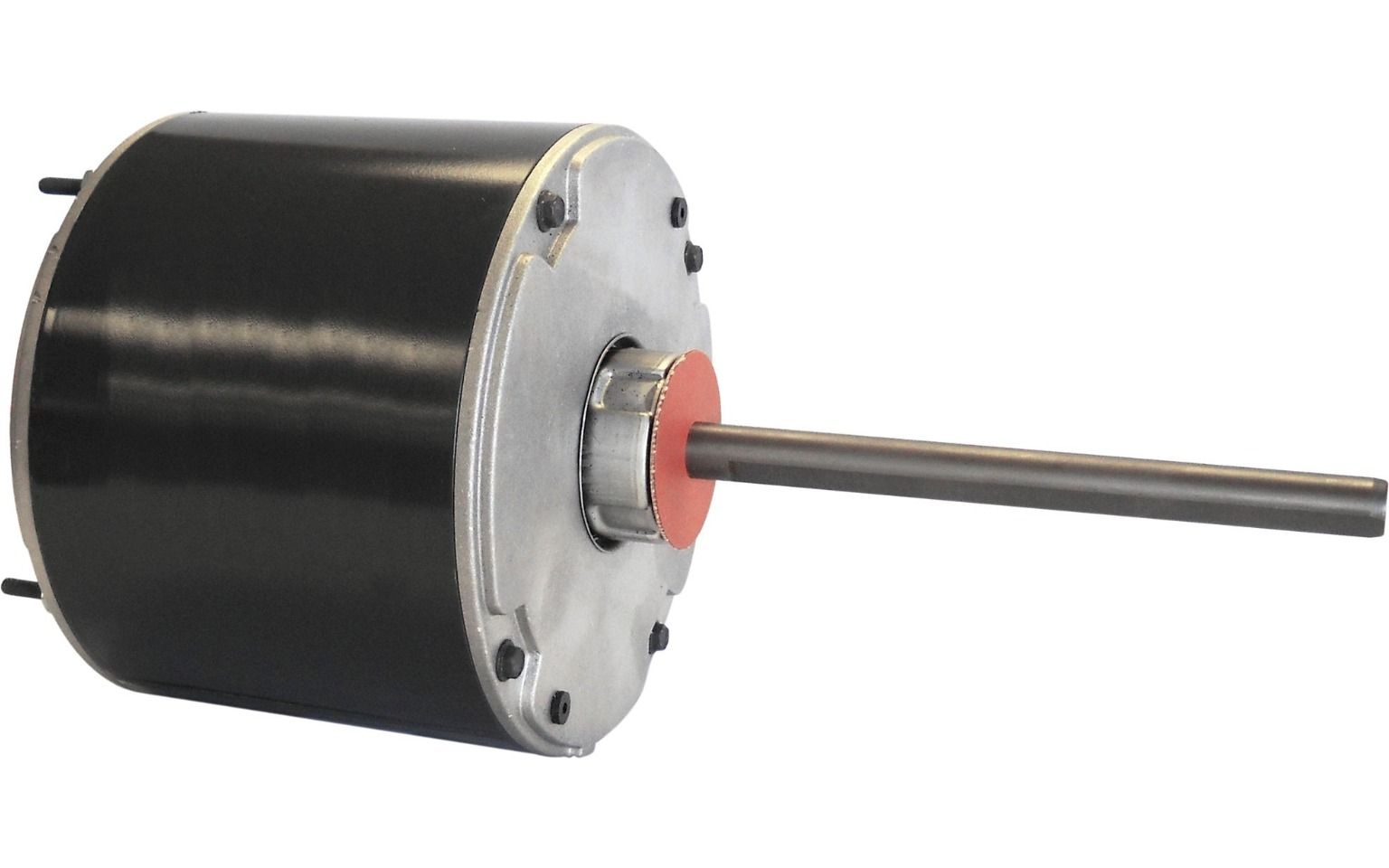

Lennox 19L25 – FirstChoice Condenser Fan Motor, 1/3 HP, 208/230V-1Ph, 825 RPM



The Lennox 19L25 (FirstChoice 19L25) condenser fan motor is an OEM-grade replacement designed to restore proper airflow and cooling efficiency in residential and light commercial HVAC systems. Engineered for dependable outdoor performance, this motor delivers smooth, stable, and quiet operation to protect the condenser coil and prevent system overheating.

With a 1/3 horsepower rating, 208/230V single-phase operation, and an 825 RPM speed, the 19L25 provides the correct torque and airflow needed for Lennox AC and heat pump units that match this specification. Its durable construction, factory-balanced rotor, and weather-resistant design ensure long service life in demanding environments.

This FirstChoice replacement matches OEM specifications for fit and performance, making it an ideal choice for technicians and homeowners seeking a direct, reliable replacement.



Key Features

• OEM-equivalent FirstChoice replacement for Lennox systems
• 1/3 HP condenser fan motor for consistent cooling performance
• 208/230V single-phase operation, 825 RPM for optimized airflow
• Factory-balanced rotor for quiet performance
• Weather-resistant housing for outdoor durability
• Compatible with select Lennox AC and heat pump units
• Ideal for system repairs and performance restoration



Specifications

• Horsepower: 1/3 HP
• Voltage: 208/230V, 1 Phase
• Frequency: 60 Hz
• Speed: 825 RPM
• Rotation: Typically CCWLE (check equipment wiring diagram)
• Frame Type: Standard condenser fan motor frame
• Motor Type: Permanent Split Capacitor (PSC)
• Application: Outdoor unit condenser fan
• Mounting: Belly band or existing bracket (varies by unit)
• Shaft Diameter: 1/2 inch (standard)
• Shaft Length: 4–5 inches (varies by batch; verify before install)
• Ambient Temperature Rating: Up to 70°C
• Enclosure: Totally Enclosed Air Over (TEAO)
• Bearings: Sleeve or ball bearing (manufacturer batch dependent)
