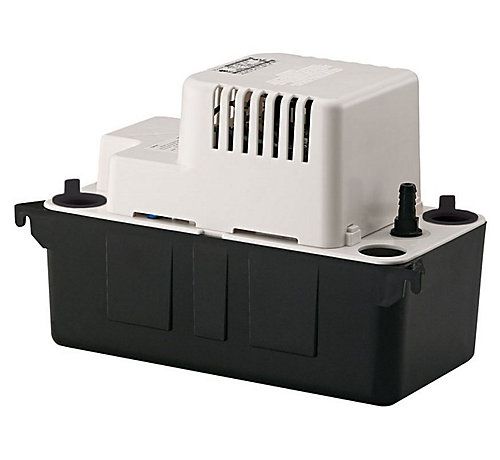

Lennox 19N61 (VCMA-20ULS) – 1/30 HP Condensate Pump with Safety Switch, 115V
Ensure efficient and reliable condensate removal with the Lennox 19N61 (VCMA-20ULS) Condensate Pump. Designed for use with HVAC systems where gravity drainage is not possible, this high-performance pump offers dependable operation and advanced safety features to protect your system.
Key Features:
- Powerful Motor: Equipped with a durable 1/30 HP motor, the VCMA-20ULS delivers consistent pumping power for air conditioning, refrigeration, and dehumidification equipment.
- Built-In Safety Switch: Features a high-level safety switch that can be wired to shut down the system or activate an alarm in case of pump failure or overflow, helping to prevent water damage.
- Vertical Design: The compact vertical-style tank saves space and makes it ideal for installations in tight mechanical rooms or equipment closets.
- High Capacity: Capable of handling up to 80 gallons per hour at zero head, with a maximum lift of up to 20 feet—suitable for a wide range of residential and light commercial applications.
- Durable Construction: Includes a thermally protected motor and ABS tank for extended service life and resistance to corrosion.
- Quiet Operation: Engineered for low-noise performance to minimize disruptions in indoor environments.
Specifications:
- Model: VCMA-20ULS
- Lennox Part Number: 19N61
- Product Depth: 5 INProduct Height: 7.03 INProduct Width: 10.32 INHorsepower: 1/30 HPType: Condensate Pump with Safety SwitchGross Weight: 4.6 LBAmperage (AMPs): 1.5Hertz: 60 hz
Application:
Perfect for HVAC systems installed in basements, attics, or other locations below the drain line. Commonly used with furnaces, air handlers, and mini-split systems where automatic condensate removal is essential.
Trust Beenimax.com to supply OEM-quality HVAC solutions like the Lennox 19N61 VCMA-20ULS condensate pump—engineered for safety, performance, and peace of mind.
