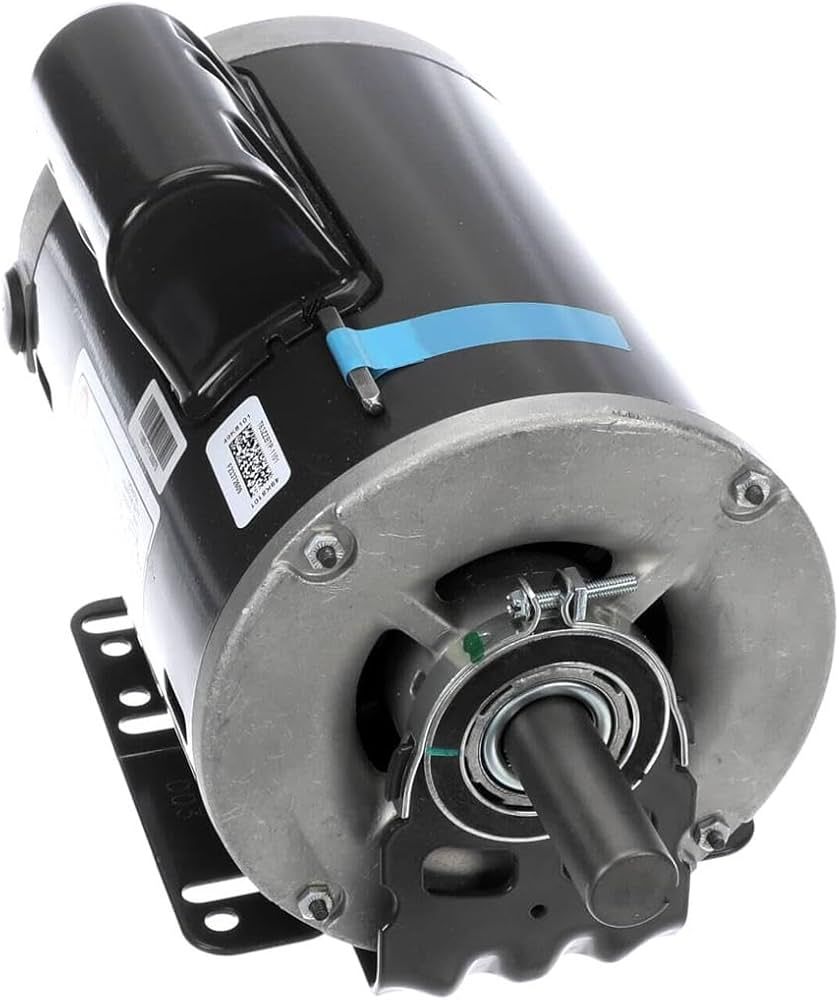

Lennox 20P06 (8000) Blower Motor – 1/4 HP, 115V, 1725 RPM, Reversible Rotation, Belt Drive
The Lennox 20P06 (8000) Blower Motor is a dependable split-phase motor engineered for HVAC systems requiring consistent air movement and reliable performance. Built with a durable belt drive configuration, this motor delivers efficient operation in heating and cooling applications where precise control and longevity are essential.
Key Features:
- Model/Part Number: 8000Minimum Order Quantity: 0.0Base Unit of Measure: Unit(S)Material Description: Nidec 8000 PSC Furnace Blower Motor, 1 Speed, 1/4 HP, 115 Volts, 1075 RPMHorsepower: 1/4 HPRPM Range: 1725Gross Weight: 12.4 LBAmperage (AMPs): 5.3 AmpBearing Type: BallHertz: 60 hzPhase: 1 PhaseCore Product: NoMotor Type: Split PhaseRPM: 1725 RPMMotor HP: 1/4 HPNumber of Speeds: 1 SpeedFrame Size: 48Motor Mounting Position: HorizontalMotor Mounting Type: Cradle BaseMotor Voltage: 115 VAC 1 Ph 60 HzShaft Size: 1/2 x 1.5 INRotation: ReversibleBearing Type: BallMotor Type: Blower
- Motor Type: Split Phase
- Horsepower: 1/4 HP
- Voltage: 115V, Single Phase
- Speed: Single-Speed, 1725 RPM
- Mounting: Belt Drive
- Rotation: Reversible (CW/CCW)
- Shaft Dimensions: 1/2 inch diameter x 1-1/2 inch length
- Bearings: Sleeve bearing for smooth, quiet operation
- Application: Designed for use in HVAC blower assemblies, compatible with Lennox systems requiring belt-driven air movement
This blower motor is an ideal replacement part for maintaining airflow performance and system efficiency. The reversible rotation feature allows for flexible installation, while its single-speed design offers straightforward operation. Built to meet Lennox’s high standards, the 20P06 ensures long-lasting performance in residential or light commercial systems.
Ensure optimal system performance by replacing worn or failing blower motors with OEM-grade components.
