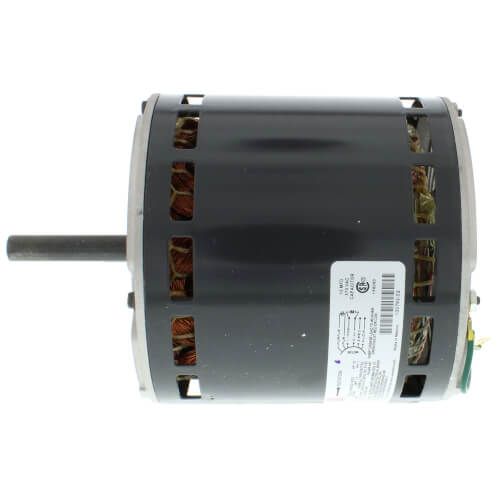

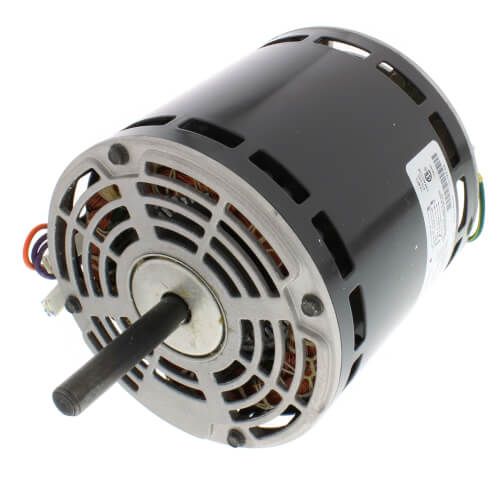

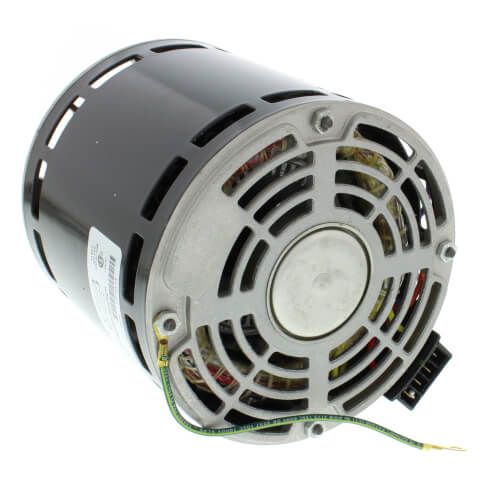

Lennox 20W28 - (100792-02) Blower Motor, 3 Speed, 1/2 HP, 460V-1Ph, 1075 RPM
Ensure efficient airflow and long-lasting reliability with the Lennox 20W28 (100792-02) Blower Motor. Designed for high-performance HVAC applications, this 3-speed motor delivers consistent operation and dependable service in residential or light commercial systems.
Key Features:
- Catalog Number: 20W28Model/Part Number: 100792-02Minimum Order Quantity: 0.0Base Unit of Measure: Unit(S)Material Description: 100792-02, Supply Air Blower Motor, 3 Speed, 1/2 HP, 460/1, 1075 RPMHorsepower: 1/2 HPRPM Range: 1075Gross Weight: 18.55 LBShaft Length: 2.5Core Product: NoSpeed: 3Frame Size: 48 FrameHeating Motor Type: PSCMotor Type: PSCRPM: 1075 RPMMotor HP: 1/2 HPNumber of Speeds: 3 SpeedFrame Size: 48Motor Mounting Position: HorizontalMotor Mounting Type: Belly BandMotor Voltage: 460 VAC 1 Ph 60 HzShaft Size: 1/2 x 2.5 INCapacitor Value: 10 MFD 440 VACRotation: CWLEBearing Type: Sleeve
- Horsepower: 1/2 HP
- Voltage: 460V, Single Phase
- Speed Options: 3-Speed
- Rotation: Reversible (CW/CCW)
- RPM: 1075
- Mounting: Belly band or resilient mount compatible
- Application: Direct drive blower motor for Lennox air handlers and furnaces
Benefits:
- Versatile Speed Control: Three-speed configuration allows flexible system balancing and airflow adjustment.
- High Voltage Efficiency: Specifically built for 460V systems, reducing energy consumption while delivering powerful airflow.
- Durable Construction: Engineered to Lennox OEM standards to ensure long operational life and consistent performance.
- Easy Replacement: Direct-fit design simplifies installation in compatible Lennox units without modifications.
This OEM Lennox motor is ideal for replacing aging or failed blower motors in your HVAC system. Whether maintaining comfort in a home or small business, the 20W28 blower motor supports efficient air distribution across all seasons.
Order the Lennox 20W28 (100792-02) Blower Motor today for fast, reliable shipping and dedicated support from Beenimax.com – your trusted HVAC parts source.
