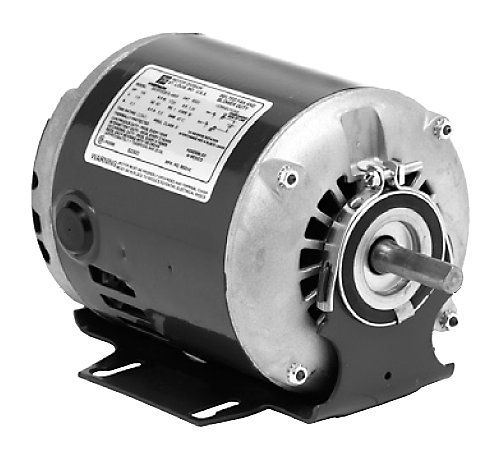

Lennox 21P24 - Blower Motor, Belt Drive, 1/3 HP, 1 Speed, 115V, 1725 RPM, Nidec 8100
The Lennox 21P24 blower motor is a dependable belt-drive motor designed to meet the rigorous demands of HVAC air handling systems. Manufactured by Nidec (model 8100), this single-speed motor delivers 1/3 horsepower and operates at 1725 RPM, making it ideal for consistent airflow in residential and light commercial heating and cooling applications.
Key specifications:
- Horsepower: 1/3 HP
- Speed: 1 Speed
- Voltage: 115V
- Rotation: Reversible
- RPM: 1725
- Mounting Type: Belt Drive
- Manufacturer: Nidec
- Gross Weight: 15.3 LBAmperage (AMPs): 6.4 AmpBearing Type: BallHertz: 60 hzPhase: 1 PhaseCore Product: NoMotor Type: Split PhaseRPM: 1725 RPMMotor HP: 1/3 HPNumber of Speeds: 1 SpeedFrame Size: 48Motor Mounting Position: HorizontalMotor Mounting Type: Cradle BaseMotor Voltage: 115 VAC 1 Ph 60 HzShaft Size: 1/2 x 1.5 INRotation: ReversibleBearing Type: BallMotor Type: BlowerSpeed: Single
- OEM Part Number: 21P24
This motor is built with durability in mind, featuring a rugged frame and precision engineering that helps extend the life of your HVAC equipment. The belt drive design provides smooth operation and allows for flexible fan speed adjustments based on pulley configuration. Whether you're replacing an aging unit or upgrading system performance, the Lennox 21P24 offers OEM reliability and seamless integration with compatible Lennox systems.
Order the Lennox 21P24 blower motor today from Beenimax.com and ensure your HVAC system runs efficiently and dependably.
