Lennox 23V74 (624623-04) ECM Constant Torque Blower Motor is a genuine OEM furnace replacement motor designed for reliable, energy-efficient airflow performance. This pre-programmed 1/2 HP ECM motor operates on 115V, 1-phase, 60Hz power and delivers variable speeds from 0–1100 RPM to maintain consistent airflow and system efficiency.
Engineered for use in compatible Lennox furnace models, the 23V74 constant torque blower motor helps improve comfort, reduce energy consumption, and ensure proper air circulation throughout the system. Ideal for HVAC professionals and service replacements, this OEM Lennox ECM motor provides dependable operation and long-term durability.
Buy Lennox 23V74 blower motor online at Beenimax for fast shipping and trusted HVAC parts supply.
Lennox 23V74 (624623-04) is a genuine OEM ECM constant torque blower motor designed for dependable furnace airflow performance and energy efficiency. This pre-programmed 1/2 HP motor operates on 115 VAC, 1-phase, 60 Hz power and delivers variable speeds from 0 to 1100 RPM. Built with a 48 frame, ball bearings, CCWLE rotation, and a 1/2" x 3.92" shaft, it is engineered for horizontal mounting with a belly band configuration.
This 5-speed ECM motor is designed to maintain consistent airflow under varying static pressure conditions, improving comfort and system performance. It weighs approximately 12 lbs and is commonly used in compatible Lennox furnace applications requiring a programmed constant torque blower motor.
Important Replacement Information:
Endura Pro constant torque motors are no longer being manufactured and have been replaced with Ensite motors. Replacement kits now include an Ensite motor along with the necessary adapter harness to convert back to Endura Pro connections when required.
Programmed Ensite Motor Kit Includes:

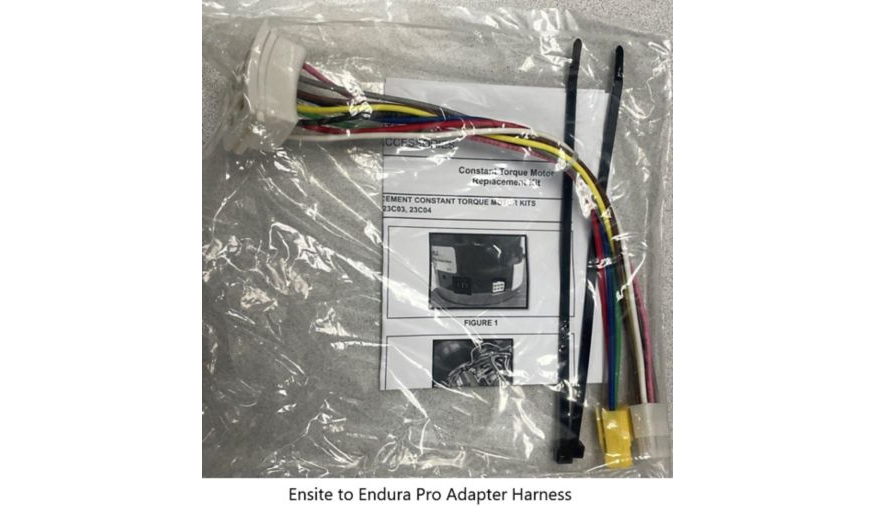

Ensite Motor Ensite to Endura Pro Adapter Harness (107246-01) Installation Instructions (508282-01) Two Zip Ties
Connector Differences:

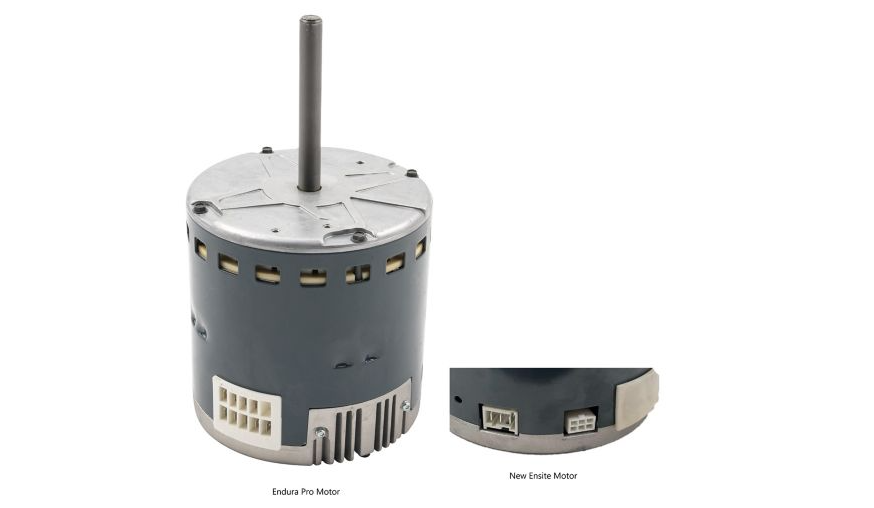

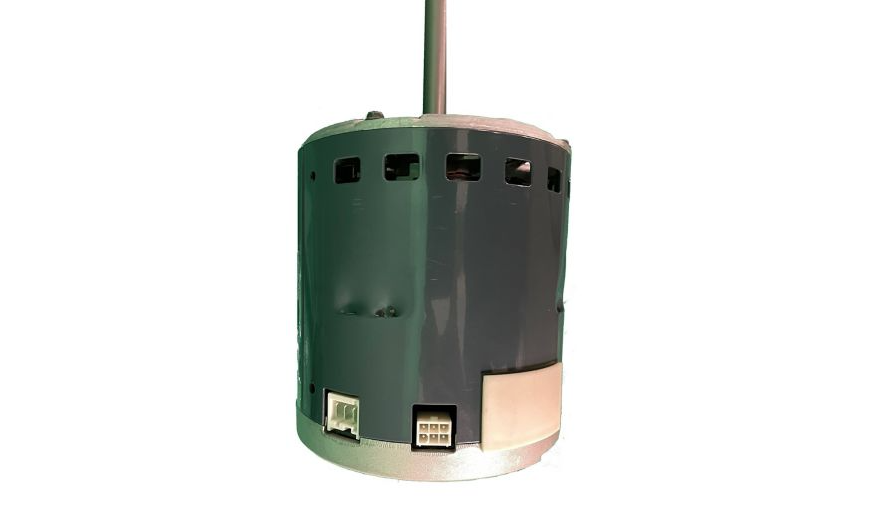

Endura Pro motors feature a single large 9-pin connector. Ensite motors use two separate connectors: a 3-pin power connector and a 6-pin low-voltage speed tap connector.
If replacing an existing Endura Pro motor, the included Ensite to Endura Pro adapter harness (107246-01) must be used. If replacing an existing Ensite motor, the adapter harness is not required.
Lennox 23V74 ECM blower motor is an OEM furnace replacement part designed for reliable operation, proper airflow control, and long-term durability in residential HVAC systems. Available at Beenimax for fast shipping and professional HVAC supply support.
