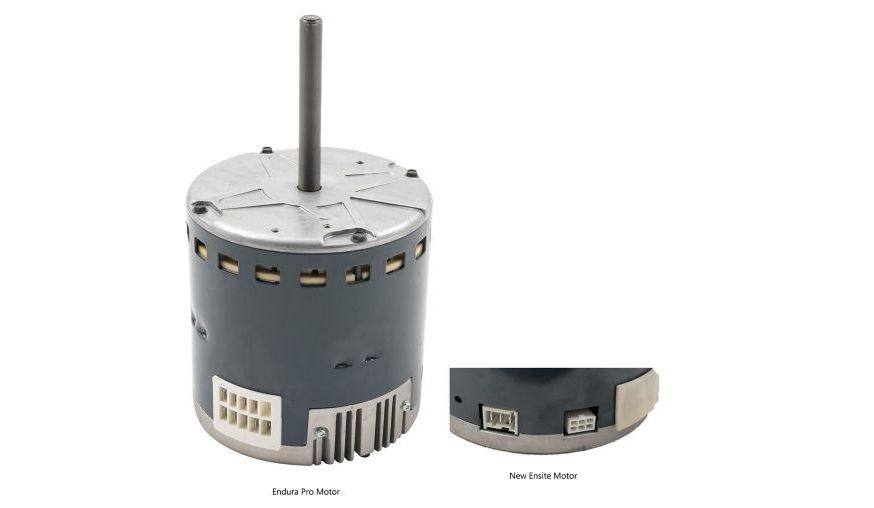

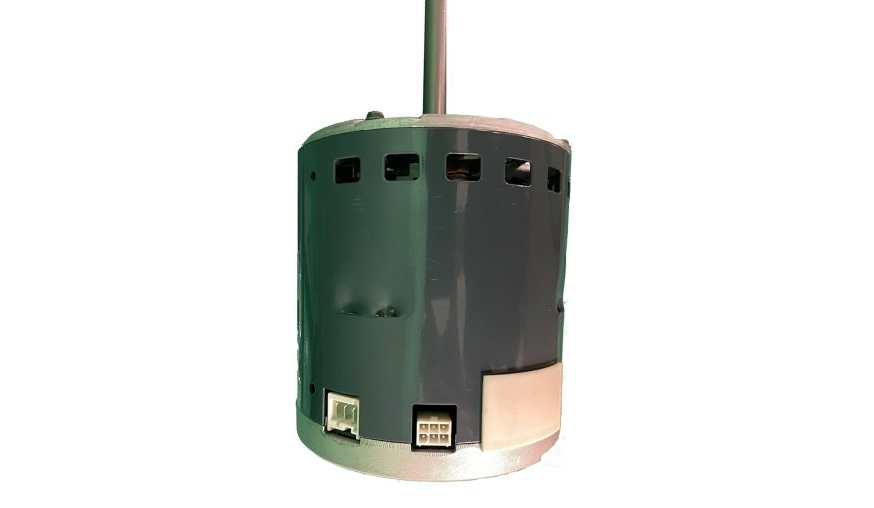

The Lennox 23V83 – 624623-13 is a premium OEM replacement ECM constant torque blower motor engineered for reliable performance and efficient airflow in residential and light commercial HVAC systems. Pre-programmed at the factory for direct drop-in replacement, this blower motor delivers quiet, smooth operation and consistent torque across a wide range of speeds. With 1 horsepower and 115 VAC single-phase power, it supports variable airflow demands up to 1100 RPM while maintaining energy-efficient performance. Designed to meet Lennox quality standards, this ECM blower motor helps improve system reliability, extend equipment life, and optimize indoor comfort.

Ideal for retrofit and service applications, the 23V83 motor is compatible with compatible furnace and air handler models that require a pre-programmed ECM constant torque drive. Installation is straightforward with no additional programming needed, reducing service time and minimizing downtime.



Key Features:

• OEM Lennox replacement blower motor engineered for performance and durability
• Constant torque ECM design for efficient variable speed airflow
• Pre-programmed from the factory for plug-and-play installation
• 1 horsepower output for robust airflow capacity
• 115 VAC, single-phase, 60 Hz electrical specification
• Speed range up to 1100 RPM for versatile HVAC system compatibility
• Quiet operation with stable torque across speed range
• Designed to support extended equipment service life



Technical Specifications:

• Model: 23V83
• Part Number: 624623-13
• Motor Type: ECM Constant Torque Blower Motor
• Horsepower: 1 HP
• Voltage: 115 VAC
• Phase: Single Phase
• Frequency: 60 Hz
• RPM Range: 0–1100
• Pre-programmed: Yes
