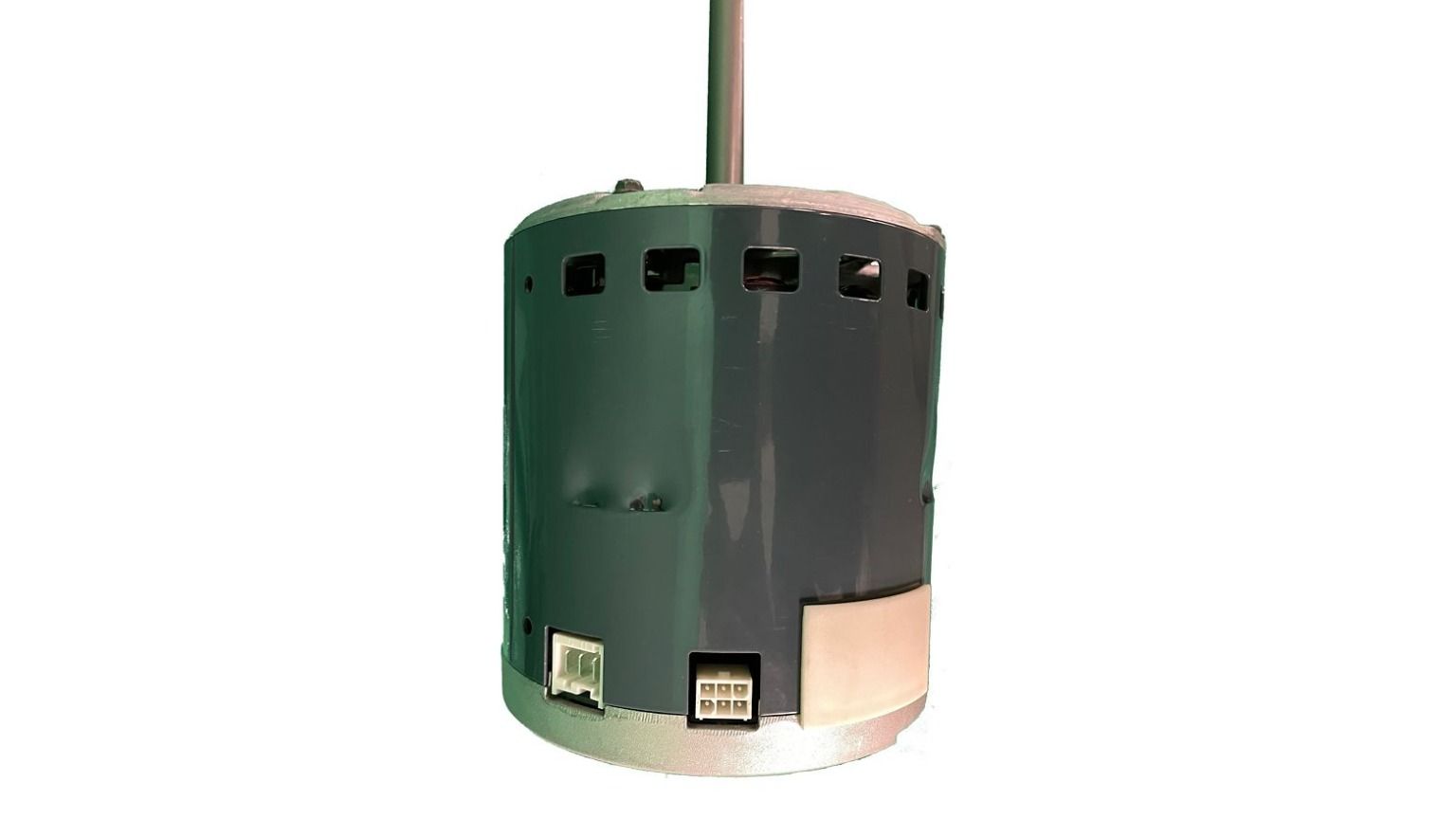

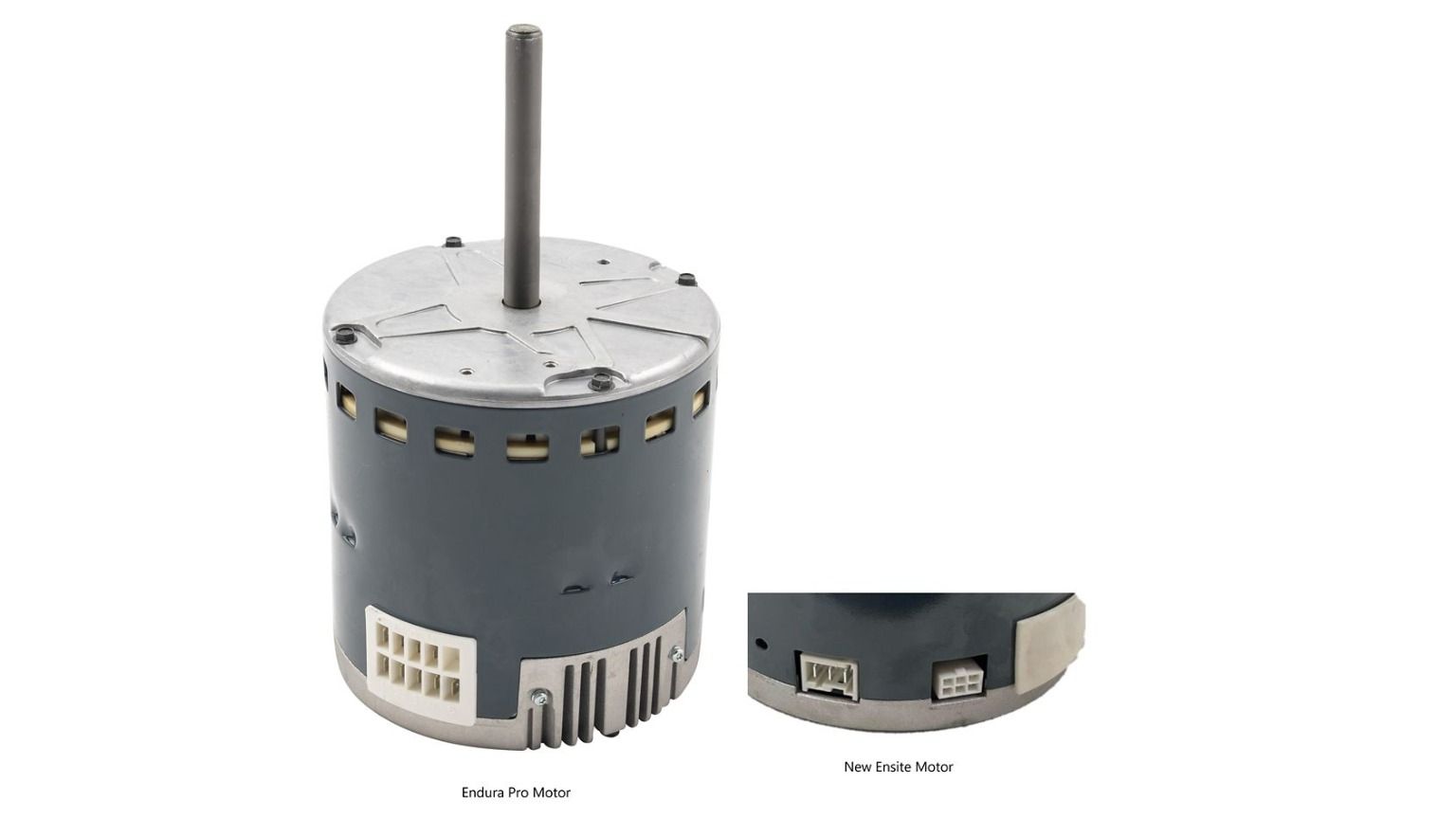

Lennox 23V85 – Lennox 624623-15 ECM Constant Torque Blower Motor, Pre-Programmed, 1 HP, 115 VAC 1 Ph 60 Hz, 0-1100 RPM



This Lennox 23V85 blower motor is a factory-authorized ECM constant torque replacement designed for high-efficiency furnace and air handler applications. The Lennox 624623-15 motor comes pre-programmed from the manufacturer, ensuring accurate torque profiles, reliable airflow performance, and seamless compatibility with approved Lennox systems. Built for long-term dependability, this 1 HP ECM motor operates quietly and efficiently while maintaining consistent RPM ranges under varying static pressures.

Manufactured to OEM specifications, the Lennox 23V85 motor delivers improved energy efficiency compared to PSC motors and reduces operational noise levels. It supports stable airflow for heating and cooling cycles, making it an ideal choice for residential and light commercial HVAC applications that require dependable torque control and longevity.



Technical Specifications

• OEM Part Number: 624623-15
• Motor Type: ECM Constant Torque, Pre-Programmed
• Horsepower: 1 HP
• Voltage: 115 VAC
• Phase: Single Phase (1 Ph)
• Frequency: 60 Hz
• RPM Range: 0–1100 RPM
• Speeds: Constant torque control with optimized profiles
• Application: Lennox furnaces and air handlers
• Compatibility: Direct OEM replacement for specified Lennox systems
• Frame Size: Standard ECM motor frame
