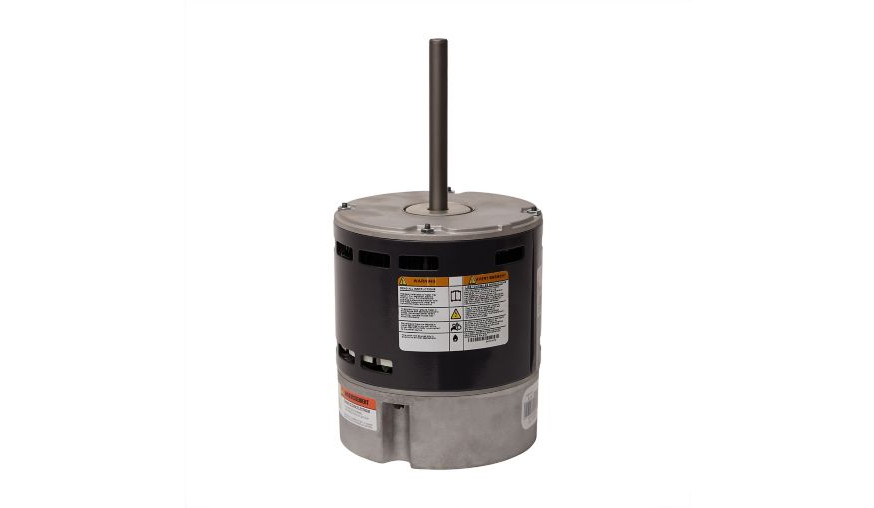

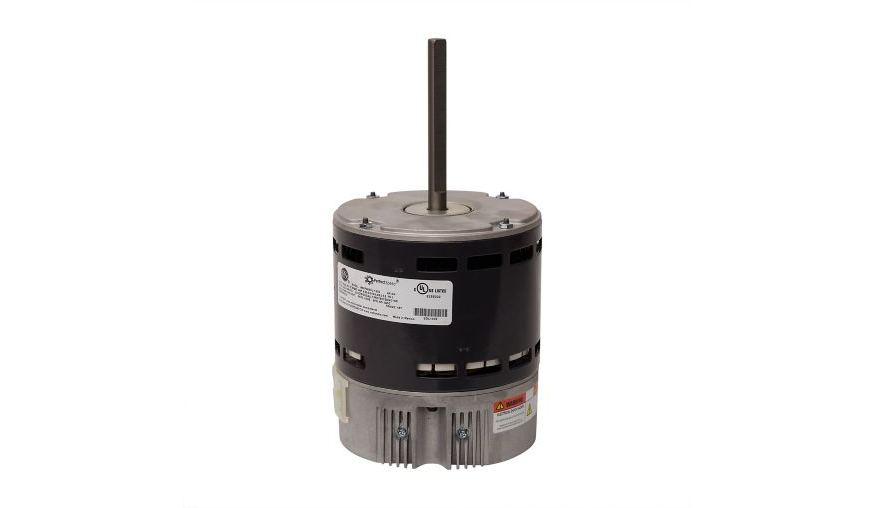

Lennox 25F04 - 107602-02, Constant Torque Blower Motor, 3/4 Hp, 1250 RPM Variable, 115/208-230 VAC, 48 Fr
Lennox 25F04 - 107602-02, Constant Torque Blower Motor, 3/4 Hp, 1250 RPM Variable, 115/208-230 VAC, 48 Fr
The Lennox 25F04 – 107602-02 Constant Torque Blower Motor is engineered for dependable airflow performance in residential and light commercial HVAC systems. Designed as a direct replacement for select Lennox blower assemblies, this 3/4 horsepower motor delivers consistent torque across a wide speed range, making it ideal for systems with variable airflow demands.
Key Features & Benefits:
- Constant torque design: Maintains stable blower performance under varying load conditions, ensuring efficient air movement and system reliability.
- Variable speed capability: 1250 RPM variable speed range allows precise airflow control to match system requirements and improve comfort.
- Robust power handling: 3/4 Hp output offers strong performance for medium-to-large HVAC applications.
- Dual voltage operation: Compatible with 115/208-230 VAC power supplies, providing flexible installation options in a variety of residential and commercial units.
- Standard 48 Frame: Easy fit into existing blower housings with 48 frame foot mount and industry-standard dimensions.
- OEM quality: Genuine Lennox replacement part manufactured to strict quality standards for long service life and dependable operation.
Applications:
Designed for use in Lennox furnaces, air handlers, and packaged units that require a constant torque blower motor with variable speed control. Ideal for contractors and technicians performing maintenance, upgrades, or equipment repairs.
Technical Specifications
- Manufacturer: Lennox
- Part Number: 25F04 / 107602-02
- Motor Type: Constant torque blower motor
- Horsepower: 3/4 Hp
- Speed: Variable up to 1250 RPM
- Voltage: 115/208-230 VAC
- Frame Size: 48
- Mounting: Foot mount
- Phase: Single-phase
- Shaft Rotation: Clockwise (as viewed from shaft end)
- Enclosure Type: Open or as specified by OEM
- Application: HVAC blower assemblies
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
