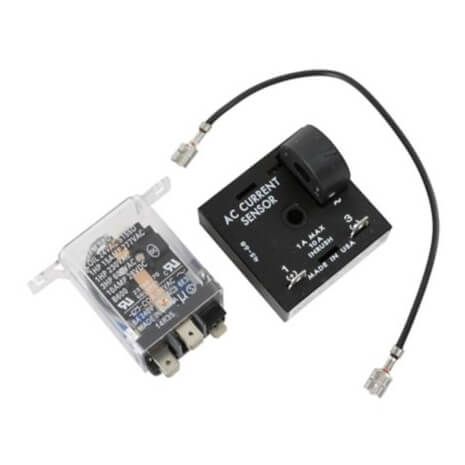

Lennox 26L56 - (LB-93804A) Current Sensing Relay Kit, SPDT, 24 Volts
The Lennox 26L56 (LB-93804A) Current Sensing Relay Kit is an essential component for HVAC systems requiring automatic control based on current flow. This Single-Pole Double-Throw (SPDT) relay is designed to detect current draw in the compressor or other electrical loads and trigger auxiliary devices such as condenser fan motors or crankcase heaters. It provides reliable switching action based on actual load operation rather than thermostat demand alone, improving energy efficiency and system control.
Key Features:
- Part Number: 26L56
- Model Number: LB-93804A
- Relay Type: Current sensing
- Contact Configuration: SPDT (Single-Pole, Double-Throw)
- Coil Voltage: 24 Volts AC
- Mounting: Included bracket and wiring kit for straightforward installation
- Application: Designed for use in HVAC systems to control secondary loads when the primary device (such as a compressor) is energized
- Compatibility: Factory-authorized part for Lennox systems and suitable for retrofitting on compatible units
- Enables automatic control of auxiliary components based on actual current draw
- Reduces unnecessary runtime of secondary devices, improving efficiency
- Simplifies wiring and integration into existing systems
- Backed by Lennox reliability and engineering standards
