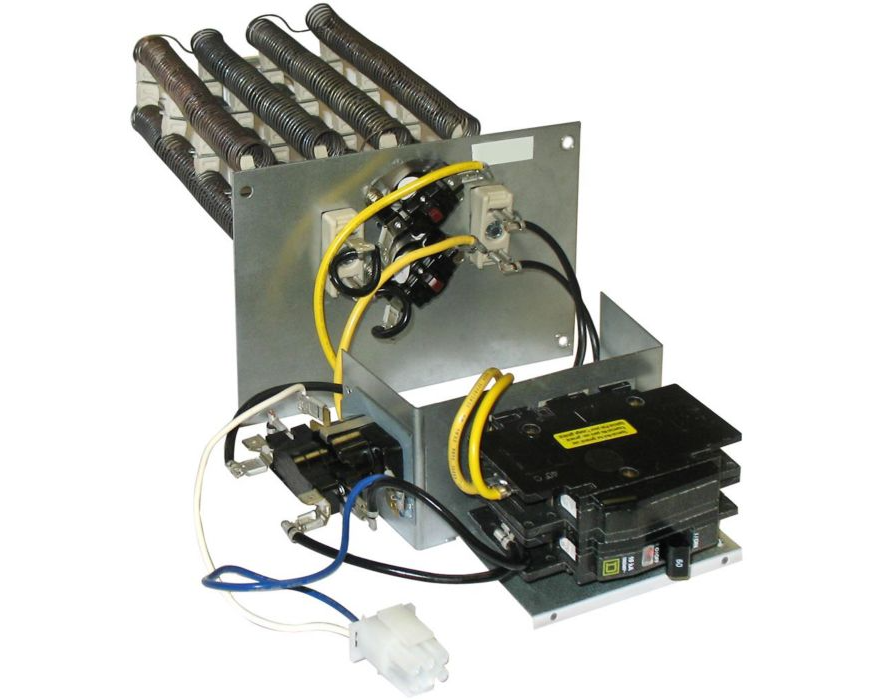

Lennox 27A13 – ECB45-5CB is a 5 kW electric heat kit designed for reliable supplemental heating in compatible Lennox air handlers. This factory-assembled kit includes an integrated circuit breaker for added protection and simplified serviceability. Built for consistent performance, it offers efficient electric heat output for residential and light commercial applications using 208–230 VAC single-phase power. Suitable for both replacement and upgrade installations.



Key Features:

• 5 kW electric heat output for steady and efficient heating
• Integrated circuit breaker for enhanced safety and easy access
• Designed for Lennox air handlers requiring 208–230 VAC, 1-phase power
• Factory-wired assembly for quick and straightforward installation
• Durable construction for long-term reliability
• Ideal for supplemental heat or backup electric heat applications



Specifications:

• Model: ECB45-5CB
• Catalog Number: 27A13
• Heat Output: 5 kW
• Voltage: 208–230 VAC
• Phase: 1 Ph
• Included: Factory-installed circuit breaker, pre-wired assembly
• Application: Residential/light commercial air handlers
