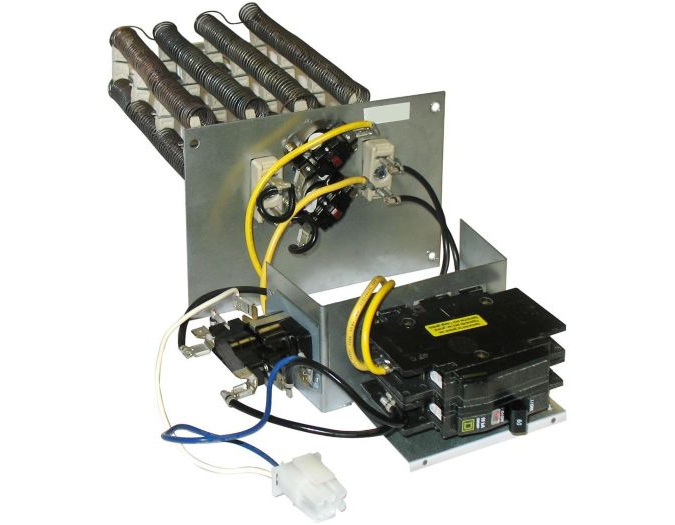

Lennox 27A15 - ECB45-10CB-P 10 kW Electric Heat Kit with 60 Amp Circuit Breaker, 208/230V 1-Phase
Lennox 27A15 - ECB45-10CB-P 10 kW Electric Heat Kit with 60 Amp Circuit Breaker, 208/230V 1-Phase
The Lennox 27A15 ECB45-10CB-P Electric Heat Kit is designed to provide efficient supplemental heating for Lennox air handlers, specifically the CBK45 and CBA25 series. With a 10 kW heating capacity, this electric heat kit ensures optimal performance and comfort for residential and commercial HVAC systems. The kit is factory assembled with controls pre-installed and wired, making it easy to integrate into your system.
This model is equipped with a 60 Amp circuit breaker for enhanced safety, protecting the unit from overloads and short circuits. The circuit breaker is factory mounted and wired on the unit, qualifying as a disconnected means in many areas, eliminating the need for a field-provided disconnect.
Key features include helix-wound nichrome heating elements, which are exposed directly in the air stream to allow for instant heat transfer. This design minimizes element temperatures and extends the service life of the unit. The heat kit also includes a supplemental thermal cutoff limit control, providing positive protection in case of excessive temperatures.
The control box and access cover are constructed of heavy-gauge galvanized steel, ensuring durability and reliability. The heat kit also features low-voltage electric heat controls that plug directly into the air handler, simplifying installation.
The Lennox ECB45-10CB-P is ETL listed and field-installable inside the unit cabinet, and it is available in a range of voltage and kW sizes for flexibility in installation.
Specifications:
- Catalog Number: 27A15
- Model/Part Number: ECB45-10CB-P
- Voltage: 208/230V, 1-phase, 60 Hz
- Heating Capacity: 10.0 kW
- Circuit Breaker: 60 Amp, for overload and short circuit protection
- For Use With: CBK45 & CBA25 Series Air Handlers
- Dimensions: Width 11.38 inches, Height 7.0 inches, Depth 21.18 inches
- Gross Weight: 4.5 lbs
- Family: ECB45 Series
- ETL Listed: Yes
- Factory Assembled and Wired: Yes
This electric heat kit is an ideal solution for those looking to add reliable, supplemental heating to their Lennox air handlers. It combines efficiency, durability, and ease of installation, ensuring long-term performance and safety.
