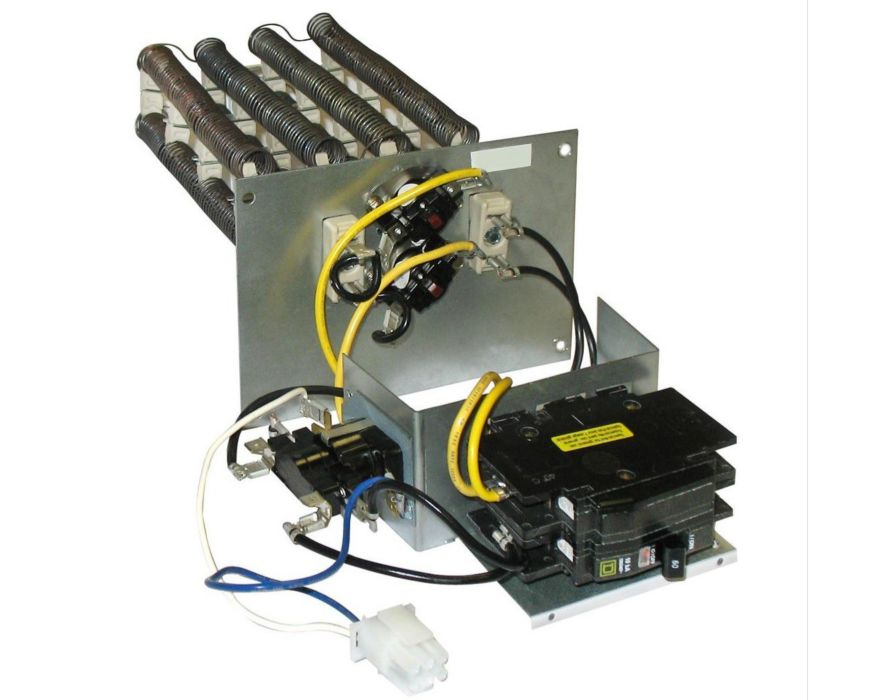

The Lennox 27A56 (model ECB48-15CB-P) Electric Heat Kit provides powerful supplemental heating performance for compatible Lennox CBK48 Series air handlers. Designed for quick field installation, this factory-tested kit ensures dependable heat output and safe operation during demanding winter conditions.

Featuring premium materials and precision controls, the ECB48-15CB-P uses helix-wound nichrome heating elements that ensure fast heat transfer, low element temperature, and long service life. Integrated circuit breakers and limit controls enhance safety and system reliability.



Key Features:

• 15 kW heating capacity for efficient, consistent performance
• Helix-wound nichrome elements for rapid heat transfer
• Integrated circuit breaker for added safety and protection
• Automatic limit controls prevent overheating
• Factory-tested for reliability and long-lasting performance
• Easy field installation into Lennox CBK48 Series air handlers



Product Specifications:

• Brand: Lennox
• Catalog Number: 27A56
• Model/Part Number: ECB48-15CB-P
• Type: Electric Heat Kit with Circuit Breaker
• Family: ECB48
• Series: ECB48
• Voltage: 208/230V 1Ph 60 Hz
• Heating Capacity: 15 kW
• For Use With: CBK48 Series Air Handlers
• Gross Weight: 7.5 LB
