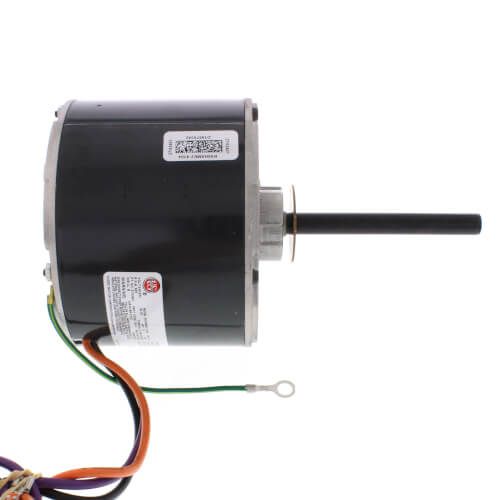

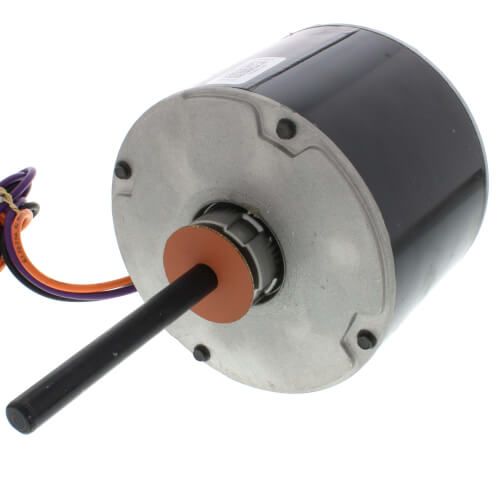

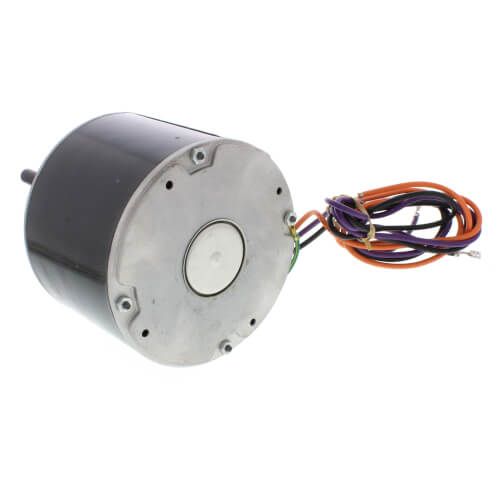

Lennox 27H34 - Condenser Fan Motor, 1/10 HP, 208/230V-1Ph, 825 RPM
Brand: Lennox
Material Description: 27H3401, Condenser Fan Motor, 1/10 HP, 208-230/1, 825 RPM
Horsepower: 1/10 HP
Gross Weight: 11.35 LB
Bearing Type: Sleeve
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 5
Country of Origin: USA
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/10 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Belly Band
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 5 IN
Capacitor Value: 3.75 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Lennox 27H34 - Condenser Fan Motor, 1/10 HP, 208/230V-1Ph, 825 RPM
The Lennox 27H34 condenser fan motor is a dependable OEM replacement part designed for optimal performance in residential and light commercial HVAC systems. With a 1/10 horsepower rating and an operating voltage of 208/230V single-phase, this motor runs efficiently at 825 RPM to ensure consistent airflow across the condenser coil.
Engineered for compatibility with select Lennox units, it features reliable construction for long service life and quiet operation. Ideal for restoring cooling performance, the 27H34 is a cost-effective solution for HVAC maintenance and repair professionals.
Key Features:
- Horsepower: 1/10 HP
- Voltage: 208/230V, Single Phase
- Speed: 825 RPM
- Application: Condenser fan motor for Lennox systems
- OEM Part: Ensures proper fit and function
Ensure lasting system performance—order the Lennox 27H34 condenser fan motor from Beenimax.com for fast shipping and trusted support.
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
