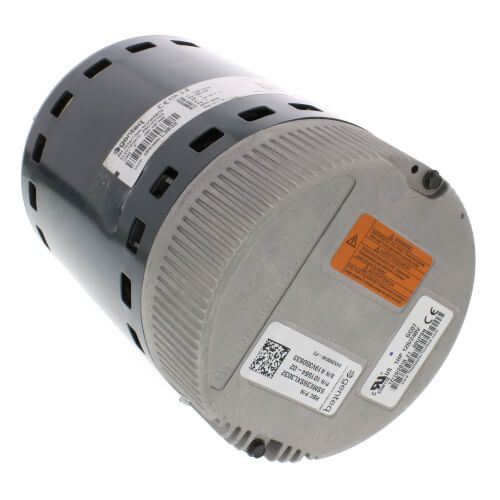

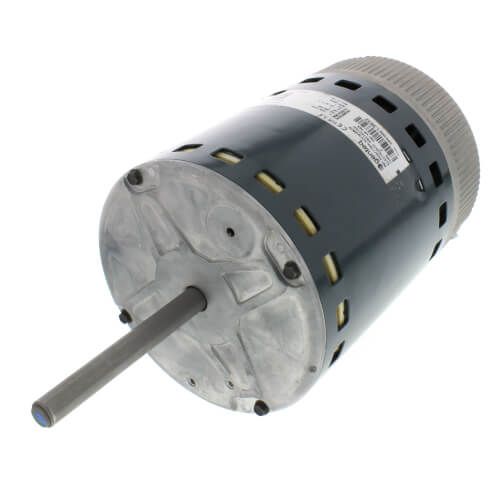

Lennox 33W13 ( 101564-02 ) - Blower Motor, 1 HP, Variable Speed, 120/240V-1Ph, 1050 RPM, 101564-02
Lennox 33W13 ( 101564-02 ) - Blower Motor, 1 HP, Variable Speed, 120/240V-1Ph, 1050 RPM, 101564-02
Brand: Lennox
Material Description: Regal Beloit 101564-02 Motor, 1HP, Voltsarible Speed, 120-240 Volts, 50-60 Hz, 1050 RPM, 7.4 -12.8 Amps
Product Height: 10.13 IN
Horsepower: 1 HP
Diameter: 5.63 IN
RPM Range: 1050
Gross Weight: 16 LB
Amperage (AMPs): 7.4/12.8A
Bearing Type: Ball
Hertz: 50/60 hz
Phase: 1 Phase
Core Product: No
Motor Type: ECM
RPM: 0-1200 RPM
Motor HP: 1 HP
Number of Speeds: Variable
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Belly Band
Motor Voltage: 120/240 1 Ph 60/50 Hz
Shaft Size: 1/2 x 3.92 IN
Rotation: Reversible
Lennox 33W13 (101564-02) – 1 HP Variable Speed Blower Motor, 120/240V, 1050 RPM
The Lennox 33W13 (101564-02) is a high-efficiency variable speed blower motor engineered for optimal airflow and quiet operation in residential and light commercial HVAC systems. With a robust 1 horsepower output and support for both 120V and 240V single-phase power, this motor delivers versatile performance across a range of applications.
Key Specifications:
- Horsepower: 1 HP
- Voltage: 120/240V, 1-Phase
- Speed: Variable, up to 1050 RPM
- Application: Compatible with select Lennox air handlers and furnaces
- Part Number: 101564-02
This blower motor is designed to provide enhanced comfort through intelligent airflow modulation, reducing energy usage while maintaining consistent indoor climate control. Whether you're replacing a failed motor or upgrading to variable speed performance, the 33W13 is a reliable OEM solution.
In stock now at Beenimax.com — order today for fast shipping and expert support.
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
