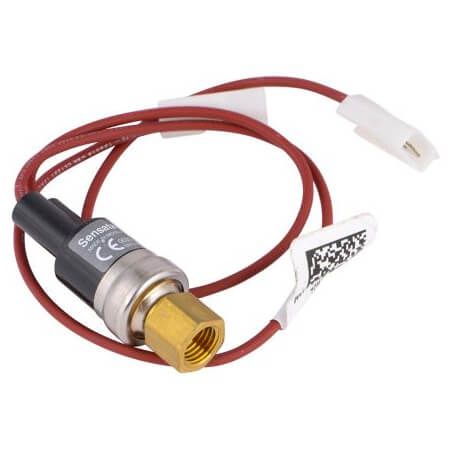

Lennox 38M77 - High Pressure Switch, 640-475 PSI
The Lennox 38M77 High Pressure Switch is a critical safety component designed to protect HVAC systems from potentially damaging high refrigerant pressures. Specifically engineered for Lennox air conditioning and heat pump units, this switch plays a vital role in system performance and longevity by monitoring the refrigerant circuit and automatically responding to abnormal pressure conditions.
Operating Parameters:
- Cut-Out Pressure: 640 PSI – The switch opens the electrical circuit when pressure exceeds this threshold, stopping compressor operation to prevent overheating or component failure.
- Reset (Cut-In) Pressure: 475 PSI – The switch automatically resets and re-engages the circuit when system pressure drops to a safe level, restoring normal operation without manual intervention.
Technical Benefits:
- Enhanced System Protection: Prevents catastrophic compressor damage due to overpressure conditions.
- Automatic Reset Design: Allows the system to resume operation when safe conditions return, improving efficiency and minimizing downtime.
- Reliable Sealed Construction: Built with quality materials to withstand vibration, temperature variation, and harsh environmental conditions.
- Precise Calibration: Factory-set specifications ensure consistent operation and compatibility with Lennox OEM performance requirements.
Applications:
- Suitable for use in high-pressure refrigerant systems, including R-410A and other modern refrigerants.
- Commonly used in residential split systems, rooftop units, and light commercial HVAC applications.
- Ideal for both new installations and direct replacement of existing high-pressure safety switches.
Installation Notes:
- Electrical quick-connect terminals provide easy integration with system wiring.
- Typically mounted on the high-pressure side of the refrigerant circuit, often near the compressor discharge line or condenser outlet.
- Should only be installed and serviced by qualified HVAC professionals to ensure proper system function and safety.
Maintain peak performance and avoid costly equipment failures with the Lennox 38M77 High Pressure Switch—a dependable safeguard for high-efficiency HVAC systems.
Now available at Beenimax – your trusted source for genuine Lennox components and expert support.
