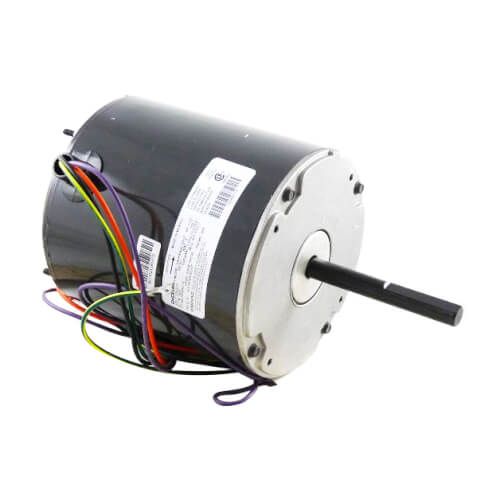

Lennox 38W83 ( 100483-19 ) - Condenser Fan Motor, 1/15 HP, 208/230V-1Ph, 825 RPM, 100483-19

Brand:
Reviews (0)
SKU
38W83
Lennox 38W83 ( 100483-19 ) - Condenser Fan Motor, 1/15 HP, 208/230V-1Ph, 825 RPM, 100483-19

Lennox 38W83 ( 100483-19 ) - Condenser Fan Motor, 1/15 HP, 208/230V-1Ph, 825 RPM, 100483-19

SKU
38W83
Brand:
Reviews (0)
$352.30
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.


Material Description: Nidec Motor 100483-19 Condenser Fan Motor, 1/15 HP, 208-230 Volts, 1 Phase, 825 RPM
Product Height: 9.75 IN
Horsepower: 1/15 HP
Type: PSC
Diameter: 5.6 IN
Gross Weight: 11.6 LB
Amperage (AMPs): 0.5A
Bearing Type: Sleeve
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 3.92
Country of Origin: Mexico
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/15 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Stud
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 3.7 IN
Capacitor Value: 5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Lennox 38W83 (100483-19) - Condenser Fan Motor, 1/15 HP, 208/230V-1Ph
The Lennox 38W83 (100483-19) condenser fan motor is a high-quality OEM replacement component designed for reliable performance in Lennox HVAC systems. Operating at 1/15 horsepower with a single-phase 208/230V power supply, this motor ensures efficient airflow across the condenser coil to maintain optimal cooling performance.
Built for durability and consistent operation, the 38W83 motor is engineered to meet Lennox’s exact specifications. It's ideal for residential and light commercial applications where precise airflow and dependable function are critical. Whether you're performing a routine replacement or repairing a failed unit, this motor offers a perfect fit and factory-approved performance.
Key Features:
  • Genuine Lennox replacement part
  • 1/15 HP motor for condenser fan applications
  • Voltage: 208/230V, single-phase
  • Designed for compatibility with various Lennox outdoor units
  • Ensures efficient heat exchange and unit performance
Keep your HVAC system running smoothly—order the Lennox 38W83 condenser fan motor today, available now at Beenimax.com.
