Lennox 39N06 - Electric Heat Sequencer, 4 Switches, Dual Timings (1–110 Seconds On/Off)

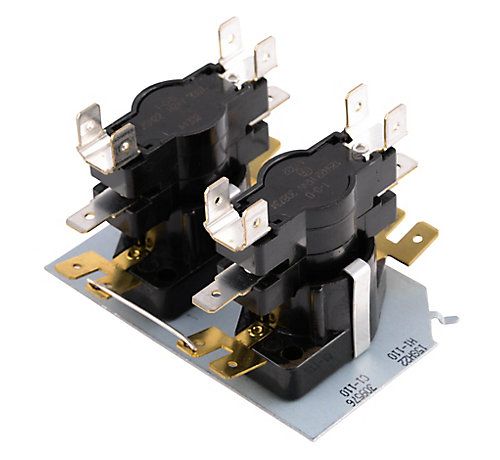

The Lennox 39N06 Electric Heat Sequencer is a high-performance control component designed for safe and efficient management of electric heating systems. Engineered to meet the rigorous demands of residential and light commercial HVAC applications, this sequencer features four individual switching stages and a dual-timing mechanism that delivers precision sequencing for both activation and deactivation cycles.
This model is essential for applications that require multiple heating elements or blower stages to operate in a staggered fashion. By spacing out the startup and shutdown of heating components, the 39N06 reduces electrical load stress, prevents tripped breakers, and improves the overall efficiency and comfort of the system.
Product Features:
- Four-Stage Sequencing:
Controls up to four heating elements or devices, allowing for step-by-step operation rather than simultaneous engagement. This reduces inrush current and extends the lifespan of electrical components. - Wide Timing Range:
Both ON and OFF delays range from 1 to 110 seconds, providing ample flexibility in timing configurations. This ensures that each element engages and disengages in a controlled, predictable manner, enhancing system reliability and comfort. - Thermal-Mechanical Operation:
Utilizes a proven bimetallic thermal mechanism to actuate the switches, offering dependable performance with minimal maintenance over time. - 24V Control Circuit Compatible:
Designed to operate with standard low-voltage (24 VAC) control circuits commonly found in HVAC systems. - Rugged and Long-Lasting:
Built with quality materials for durability and consistent performance in demanding temperature and load environments. - Mounting Flexibility:
Can be installed via bracket or direct surface mounting, making it suitable for a wide variety of system layouts and configurations.
Technical Specifications:
- Brand: Lennox
- Part Number: 39N06
- Switches: 4
- ON Timing Delay: 1 to 110 seconds
- OFF Timing Delay: 1 to 110 seconds
- Voltage (Control Circuit): 24 VAC
- Type: Electric heat sequencer
- Application: Multi-stage electric heat control
- Mounting Type: Bracket or surface
- Operating Temperature Range: Designed for HVAC operational environments
Common Applications:
- Multi-stage electric furnaces
- Electric air handlers
- Packaged rooftop units with electric heat
- Auxiliary heat staging in heat pump systems
- Blower motor delay control
- Any HVAC system requiring staggered operation of heating elements
Why Choose the Lennox 39N06?
Using the Lennox 39N06 Electric Heat Sequencer ensures optimized power distribution, smoother operation, and prolonged system life. With four switching stages and programmable timing delays, it's ideal for replacing sequencers in older units or integrating into newly installed systems. Proper sequencing improves not only the longevity of electrical components but also contributes to energy efficiency and occupant comfort.
Available now at Beenimax – your dependable source for genuine Lennox parts and accessories.
Ensure optimal performance and safety in your heating system with the trusted reliability of the Lennox 39N06.
