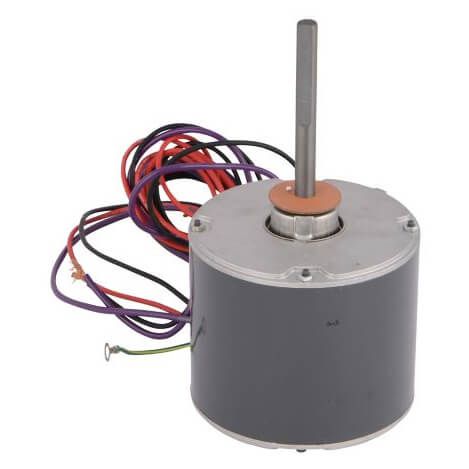

Lennox 40C98 - (40C9801) Condenser Fan Motor, 1/2 HP, 460V-1Ph/1, 1075 RPM
The Lennox 40C98 (part number 40C9801) is a high-quality condenser fan motor engineered to restore or enhance the performance of Lennox HVAC systems. Specifically designed to meet original equipment specifications, this 1/2 horsepower motor ensures efficient and quiet operation of your outdoor condenser unit, supporting reliable cooling performance even in demanding environments.
- Horsepower:
1/2 HP rating provides strong and stable torque for condenser fan operation, ensuring consistent airflow and system cooling. - Voltage & Phase:
Operates at 460 volts, single-phase, making it ideal for high-voltage systems often used in light commercial or large residential units. - Speed:
Rated at 1075 RPM, this motor maintains optimal airflow across the condenser coil, aiding in efficient heat rejection and improved system performance. - Shaft & Rotation:
The motor includes a standard shaft diameter and rotation direction (typically CCW or CW facing shaft), making it directly compatible with many OEM fan blades and mounting brackets. Always confirm rotation and shaft specs before installation. - Mounting Compatibility:
Designed for universal mounting options including belly band or through-bolt configurations. Suitable for both vertical shaft-up and horizontal applications. - Enclosure & Durability:
Built with an enclosed, air-over (TEAO) design, this motor is resistant to dust, debris, and moisture commonly found in outdoor HVAC installations. Precision bearings and protective coatings help extend lifespan and reduce maintenance needs. - Energy Efficiency:
The 40C98 motor supports energy-efficient operation with minimal electrical draw, contributing to lower operating costs over time.
The Lennox 40C98 condenser fan motor is a direct OEM replacement used in various Lennox air conditioning units. It is engineered to meet the exact design, torque, and speed specifications required for smooth integration and reliable system operation. Whether you're replacing a failed motor or performing proactive maintenance, the 40C98 ensures system compatibility and performance consistency.
This motor may also be suitable for compatible units from Allied Air or other HVAC systems that match the power, RPM, and voltage requirements.
- Brand: Lennox
- OEM Part Number: 40C98 (Replaces 40C9801)
- Horsepower: 1/2 HP
- Voltage: 460V
- Phase: Single-phase (1Ph)
- Speed: 1075 RPM
- Motor Type: Condenser Fan Motor
- Rotation: Confirmed at installation (CW or CCW)
- Mounting: Universal – belly band or thru-bolt
- Frame Type: Typically 48 Frame (confirm in specs)
- Duty: Continuous Air Over
- Application: Residential or light commercial outdoor condensing units
At Beenimax, we provide only genuine, brand-new Lennox replacement parts backed by expert support and fast shipping. The 40C98 fan motor is in stock and ready to ship—ideal for technicians, contractors, or property owners looking to keep their HVAC systems running at peak performance.
Order now to restore cooling efficiency with the trusted performance of Lennox OEM parts. Available exclusively at Beenimax.
