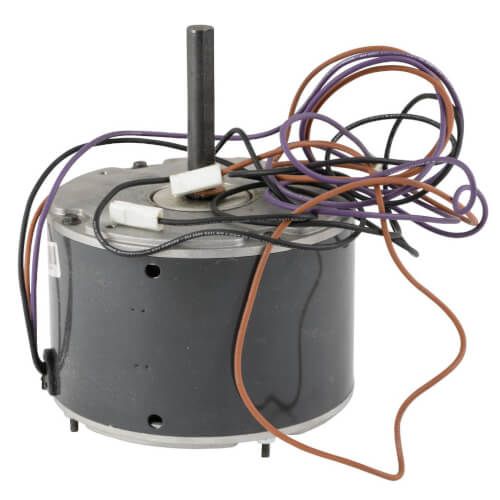

Lennox 41W49 - (47477-001) Condenser Fan Motor, 1/8 HP, 208/230/460V-1Ph, 50/60Hz, 1075 RPM
Ensure optimal performance and reliability for your HVAC system with the Lennox 41W49 Condenser Fan Motor. This high-quality OEM replacement motor (part number 47477-001) is engineered for use in Lennox air conditioning units and heat pumps, providing consistent airflow and efficient operation.
Key Features:
- Power Rating: 1/8 horsepower (HP), ideal for residential and light commercial applications.
- Voltage Compatibility: Multi-voltage motor supports 208/230/460V, single-phase operation—perfect for versatile installation needs.
- Frequency Support: Operates efficiently on both 50 Hz and 60 Hz electrical systems.
- Speed: Fixed 1075 RPM for optimal condenser fan performance.
- Durable Build: Constructed with robust materials to withstand continuous outdoor use and variable weather conditions.
- OEM Replacement: Direct replacement for Lennox systems requiring part number 41W49 or 47477-001, ensuring proper fit and function.
Applications:Designed specifically for use in Lennox air conditioning and heat pump systems, this motor plays a vital role in dissipating heat from the condenser coil, promoting system efficiency and longevity.Specifications:
- Horsepower: 1/8 HP
- Voltage: 208/230/460V
- Phase: Single-phase
- Frequency: 50/60 Hz
- Rotation Speed: 1075 RPM
- Mounting Type: Belly band or equivalent (check system compatibility)
Note: Always verify compatibility with your specific Lennox model before installation. Professional installation is recommended to ensure safety and performance.
Available now on Beenimax.com – your trusted source for genuine Lennox HVAC replacement parts.
