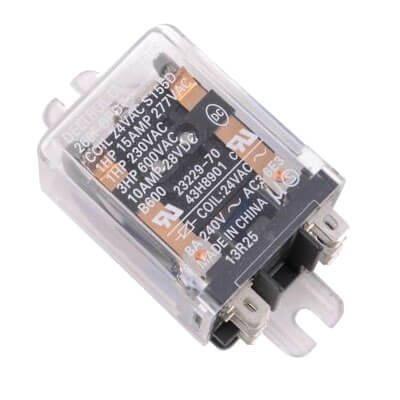

Lennox 43H89 - DPDT 15A Relay (24V)
Lennox 43H89 - DPDT 15A Relay (24V)
The Lennox 43H89 is a precision-engineered DPDT (Double Pole Double Throw) relay designed for demanding HVAC control applications. With a 24-volt coil and a 15-amp contact rating, this relay provides reliable switching of two separate circuits, making it an essential component for systems requiring coordinated control of multiple loads.
Technical Specifications:
- Manufacturer: Lennox
- Part Number: 43H89
- Type: Electromechanical Relay
- Contact Configuration: DPDT (Double Pole Double Throw)
- Coil Voltage: 24V AC
- Contact Rating: 15 Amps @ 277V AC
- Terminals: Quick-connect for simplified wiring
- Mounting Style: Surface or socket mount compatible
- Operating Temperature Range: Designed for HVAC environmental conditions
Functionality & Benefits:
- Dual Switching Capability: Controls two independent circuits simultaneously, allowing for versatile system design and integration.
- Low Voltage Control: Operates with a 24V AC signal, commonly used in thermostat and control board outputs.
- High Current Handling: Suitable for switching fan motors, solenoid valves, contactors, or other medium-load devices.
- Mechanical Durability: Built with quality materials to withstand frequent cycling and extended use in HVAC environments.
- Safe & Secure: Helps isolate control signals from high-current equipment, improving safety and system protection.
Typical Applications:
- Air handlers and furnace fan control
- Compressor switching
- Zone control systems
- Interface between control boards and external devices
- Switching dual-speed motors or sequential stages in heating/cooling systems
Compatibility:
The 43H89 relay is a direct replacement for specified Lennox models and is used across a wide range of Lennox HVAC units. Always refer to your equipment manual or consult a technician to verify compatibility with your specific system.
The 43H89 relay is a direct replacement for specified Lennox models and is used across a wide range of Lennox HVAC units. Always refer to your equipment manual or consult a technician to verify compatibility with your specific system.
Why Buy from Beenimax.com?
Beenimax.com offers authentic Lennox OEM components, ensuring your equipment performs at factory standards. With fast order fulfillment, reliable customer service, and competitive pricing, we are the go-to supplier for HVAC professionals and contractors. Whether you're doing maintenance, a retrofit, or a repair, trust Beenimax to deliver the parts you need—accurately and on time.
Upgrade your system's reliability with the Lennox 43H89 relay—available now at Beenimax.com.
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
