Lennox 45H03 - ( 45H0301 ) Relay, DPDT, 24 Volts
Lennox 45H03 - (45H0301) Relay, DPDT, 24 Volts

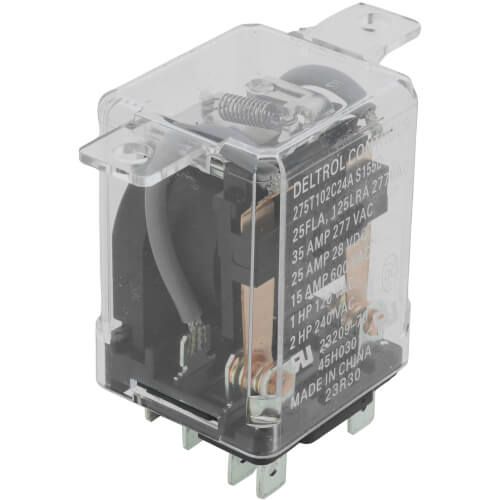

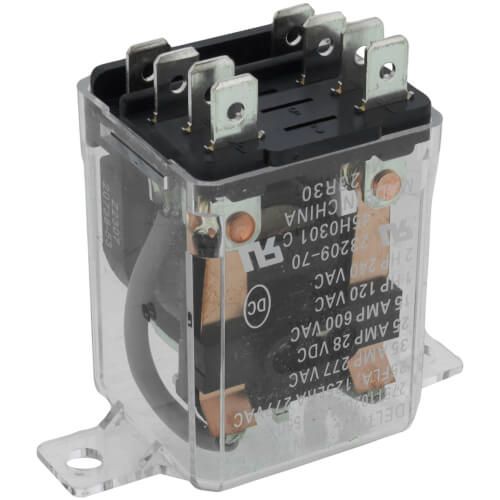

The Lennox 45H03 (catalog number 45H0301) is a double pole double throw (DPDT) relay specifically engineered for HVAC control applications. With a 24-volt AC coil, this relay is ideal for use in control circuits where reliable switching of multiple loads is required. It plays a critical role in managing various system operations, such as energizing fan motors, compressors, reversing valves, and other electromechanical components in heating and cooling systems.
Product Features:
- Relay Type: DPDT (Double Pole, Double Throw), offering two independent switching circuits per activation
- Coil Voltage: 24 Volts AC – compatible with standard HVAC control systems
- Mounting Style: Plug-in base with 8-pin terminal connections for quick installation and replacement
- Contact Rating: Designed for control circuit-level switching with dependable electrical performance
- Durability: Constructed with high-quality materials for long service life and resistance to electrical wear
- Compact Design: Space-efficient form factor suitable for use in tight control panel enclosures
Applications:
- Commonly used in Lennox HVAC systems for controlling multiple electrical loads
- Supports automation of fans, dampers, solenoids, and other low-voltage switching devices
- Can be implemented in both residential and light commercial equipment
Technical Advantages:
- Dual-Circuit Switching: Ability to control two separate circuits simultaneously with a single coil activation
- Low Voltage Operation: Compatible with 24V control logic widely used in HVAC equipment
- Serviceability: Easily replaceable with standard DPDT relay sockets or wiring harnesses
Compatibility:
The Lennox 45H03 relay is a direct OEM replacement part for various Lennox models. Always verify part compatibility with your equipment using the unit’s model number or consult your system manual.
Why Buy from Beenimax.com?
Beenimax.com is your dependable source for authentic Lennox parts. We specialize in delivering factory-direct components with fast processing, expert support, and competitive pricing.
Trust us to supply the parts you need to restore system performance and maintain long-term HVAC reliability.
