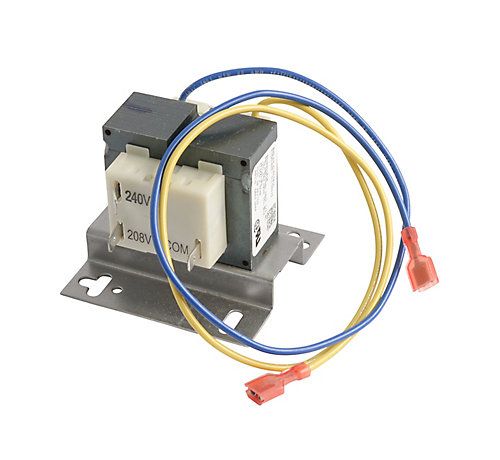

Lennox 46W10 - (101191-01) Class 2 Transformer, 40 VA, 208/240 VAC 60 Hz Primary, 24 VAC Secondary
Ensure safe and reliable low-voltage control with the Lennox 46W10 Class 2 Transformer. Engineered to meet demanding HVAC system requirements, this high-performance transformer delivers a steady 24 VAC secondary output from a 208/240 VAC 60 Hz primary input. With a robust 40 VA power rating, it supplies ample energy to support thermostats, relays, and other 24V control components in residential and light commercial heating and cooling systems.
Key Features:
- Model Number: 46W10
- Manufacturer Part Number: 101191-01
- Class 2 Design: Meets NEC requirements for limited power circuits, ensuring safety and compliance in low-voltage applications.
- Primary Voltage: 208/240 VAC, 60 Hz
- Secondary Voltage: 24 VAC
- Power Rating: 40 VA, ideal for most standard HVAC control circuits
- Mounting Style: Compact and easy-to-install design allows for secure mounting inside air handlers, furnaces, or electrical enclosures.
- Construction: Durable housing and high-quality windings for long-term performance and electrical stability.
Applications:
Perfect for use in HVAC systems requiring a dependable 24V power source, including:
- Thermostat power supply
- Gas valve and ignition control circuits
- Relay and contactor actuation
- Zone control panels
Why Choose the Lennox 46W10 Transformer?
Designed specifically for Lennox systems but compatible with many other HVAC brands, this transformer offers the dependable performance technicians trust. Backed by Lennox’s quality standards, the 46W10 ensures optimal functionality in temperature control and system safety.
Compatible with a range of Lennox units and other low-voltage control applications.
Shop with confidence at Beenimax.com — your reliable source for genuine Lennox replacement parts.
