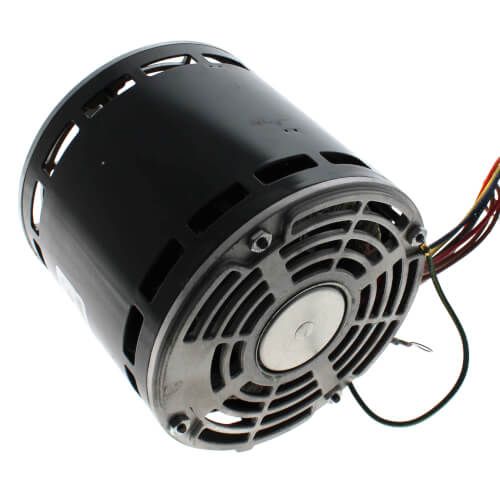

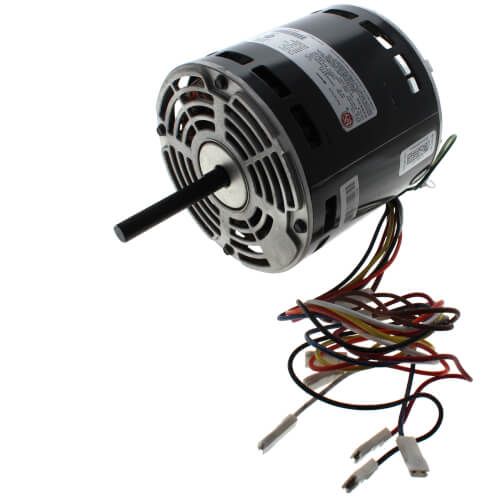

Lennox 56W67 - 47467-001, Blower Motor, 3/4 HP, 115V, 5 Speed, 1075 RPM, 47467-001
Lennox 56W67 - 47467-001, Blower Motor, 3/4 HP, 115V, 5 Speed, 1075 RPM, 47467-001
Material Description: 47467-001, Supply Air Blower Motor, 5 Speed, 3/4 HP, 115/1, 1075 RPM
Horsepower: 3/4 HP
Gross Weight: 20 LB
Shaft Length: 3
Country of Origin: Mexico
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 3/4 HP
Number of Speeds: 5 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Belly Band
Motor Voltage: 115 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 3 IN
Capacitor Value: 12.5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Lennox 56W67 - 47467-001 Blower Motor, 3/4 HP, 115V, 5-Speed
The Lennox 56W67 (part number 47467-001) is a reliable and high-performance blower motor designed for use in Lennox HVAC systems. With a 3/4 HP output and 115V operation, this motor delivers powerful air circulation and consistent airflow. It features a versatile 5-speed configuration, allowing for efficient operation across various heating and cooling demands.
Key Features:
- Horsepower: 3/4 HP
- Voltage: 115V
- Speed Options: 5-speed for flexible performance
- OEM Part: Genuine Lennox replacement part
- Application: Compatible with select Lennox systems for reliable system restoration
Whether you're replacing a worn motor or upgrading for improved efficiency, the Lennox 56W67 ensures smooth, dependable performance.
Available now at Beenimax – your trusted source for HVAC parts.
