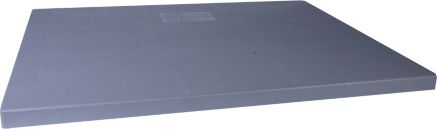

The DiversiTech EL3648-3 E Lite Plastic Equipment Pad is a heavy-duty, self-leveling HVAC equipment base designed to support air conditioners, heat pumps, and other outdoor mechanical units. Measuring 36 inches long x 48 inches wide x 3 inches high, this rugged polypropylene condenser pad provides stable ground support while remaining lightweight for easier handling and installation.

The E Lite® series features uniform ribbed construction that delivers excellent load distribution without the need for additional inserts. Its textured surface helps prevent equipment shifting, while rounded edges and a concrete gray finish provide a clean, professional appearance for residential and light commercial HVAC installations.

Manufactured from durable polypropylene with recycled material content, the EL3648-3 pad resists weather, moisture, and ground settling. Molded size markings make identification simple on the job site. Many building codes now require 3 inch thick equipment pads, making this model ideal for code-compliant installations. Always verify local code requirements before installation.

Brand DiversiTech
Catalog Number 59X79
Model EL3648-3
Series E Lite®
Type Plastic Equipment Pad
Material Polypropylene
Color Concrete Gray
Gross Weight 38 lb
