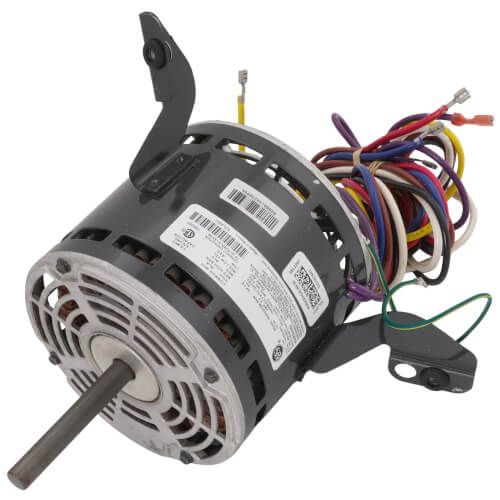

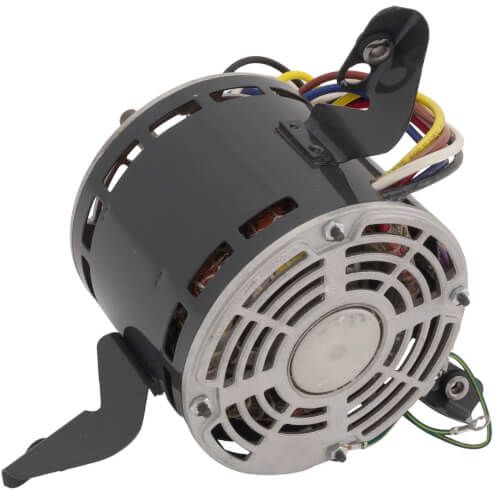

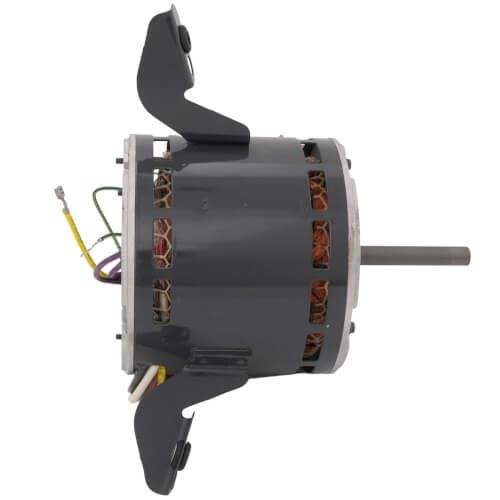

OEM Lennox 60L22 Blower Motor – 1/2 HP, 1075 RPM, 5-Speed, PSC, 115V, 1-Phase 60Hz

The Lennox 60L22 is a genuine OEM blower motor designed for optimal performance in Lennox residential and light commercial HVAC systems. Built with durability and precision, this 1/2 horsepower motor features a permanent split capacitor (PSC) design for efficient, quiet operation and reliable air circulation throughout your system.

Operating at 1075 RPM across five selectable speeds, the 60L22 motor is ideal for systems requiring variable airflow control. It runs on standard 115V power, single-phase, 60 Hz, and is engineered to meet Lennox's exact performance and quality specifications. Whether you're replacing a worn-out motor or performing preventative maintenance, this original Lennox motor ensures proper fit, function, and longevity.

Key Specifications:

• OEM Lennox part number: 60L22 (Replaces older motor models as applicable)

• Motor type: PSC (Permanent Split Capacitor)

• Horsepower: 1/2 HP

• Speed: 5-Speed

• Rotation: Reversible (CW/CCW)

• RPM: 1075

• Voltage: 115 VAC

• Frequency: 60 Hz

• Phase: Single-phase

• Frame: 48Y

• Shaft: 1/2" diameter x 5" length (approx.)

• Mounting: Belly band or resilient rings (not included)

• Application: Indoor blower motor for Lennox gas furnaces and air handlers

Why Choose OEM?
This is not an aftermarket or universal motor. The Lennox 60L22 is a factory-authorized replacement, ensuring compatibility with a range of Lennox units. Using OEM parts helps maintain your system’s warranty, efficiency, and performance.

Compatible Units:
Check your unit’s model number or consult your technician to confirm compatibility. Commonly used in various Lennox Elite and Merit series furnaces and air handlers.
