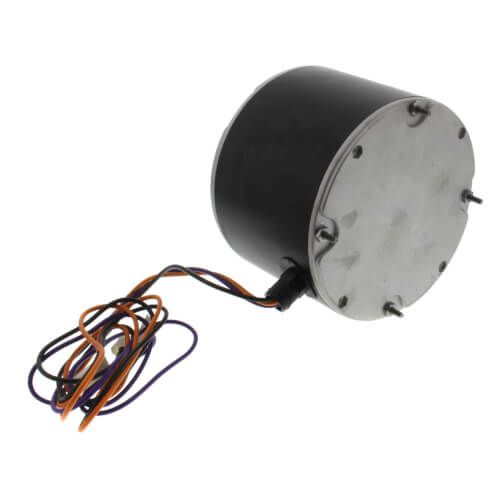

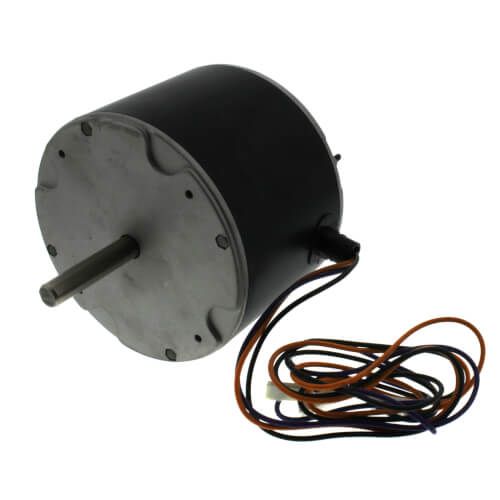

Lennox 61W89 ( 100483-25 ) - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 1075 RPM, 100483-25

Brand:
Reviews (0)
SKU
61W89
Lennox 61W89 ( 100483-25 ) - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 1075 RPM, 100483-25
Lennox 61W89 ( 100483-25 ) - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 1075 RPM, 100483-25
Lennox 61W89 ( 100483-25 ) - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 1075 RPM, 100483-25
Lennox 61W89 ( 100483-25 ) - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 1075 RPM, 100483-25
Lennox 61W89 ( 100483-25 ) - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 1075 RPM, 100483-25
Lennox 61W89 ( 100483-25 ) - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 1075 RPM, 100483-25

Lennox 61W89 ( 100483-25 ) - Condenser Fan Motor, 1/4 HP, 208/230V-1Ph, 1075 RPM, 100483-25

SKU
61W89
Brand:
Reviews (0)
$175.50
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.


Material Description: Interlink 100483-25 Condenser Fan Motor, 1/4 HP, 208-230 Volts, 1 Phase, 1075 RPM
Product Height: 6.3 IN
Horsepower: 1/4 HP
Type: PSC
Diameter: 5.6 IN
Gross Weight: 11.75 LB
Amperage (AMPs): 1.4A
Bearing Type: Ball
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 2.25
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/4 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Stud
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 2.25 IN
Capacitor Value: 7.5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Ball
