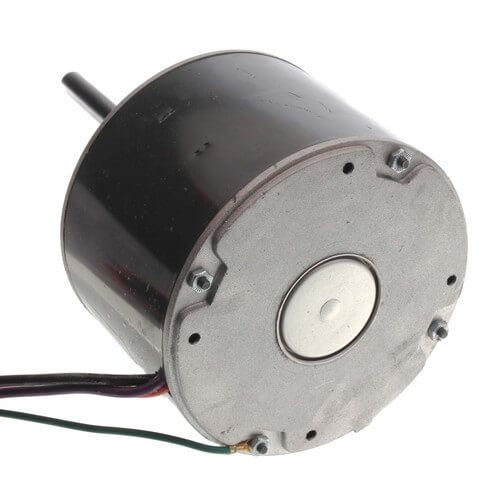

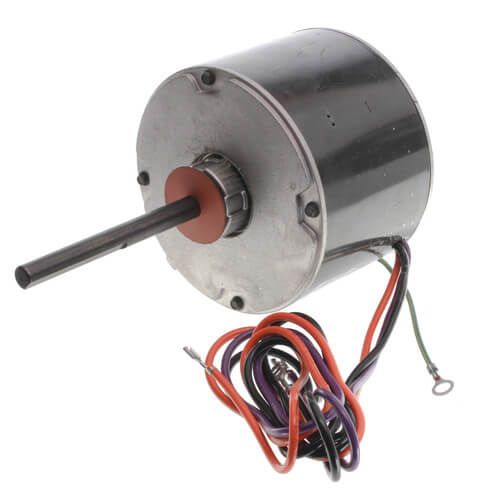

Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM

Brand:
Reviews (0)
SKU
65G60
Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM
Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM
Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM
Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM
Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM
Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM

Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM

SKU
65G60
Brand:
Reviews (0)
$202.80
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Catalog Number
65G60
Model/Part Number
65G6001
Base Unit of Measure
Unit(S)
Material Description:Nidec Motor 65G6001
Condenser Fan Motor, 1 Speed, 1/6 HP, 208-230 Volts, 825 RPM
Product Height: 9.5 IN
Horsepower: 1/6 HP
Type: PSC
Diameter: 5.6 IN
Gross Weight: 11.1 LB
Amperage (AMPs): 1.1A
Bearing Type: Sleeve
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 2.5
Country of Origin: Mexico
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/6 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Belly Band
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 2.5 IN
Capacitor Value: 5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Ensure optimal performance and cooling efficiency with the Lennox 65G60 (65G6001) Condenser Fan Motor. Designed for precision and reliability, this OEM replacement motor is engineered to meet the demanding standards of Lennox HVAC systems. It plays a crucial role in dissipating heat from the condenser coil, helping maintain consistent system performance and prolonging the life of your unit. Whether you're performing a repair or routine maintenance, the 65G60 delivers dependable airflow and energy-efficient operation. Trust Beenimax.com for genuine Lennox parts that HVAC professionals rely on.
Key Features:
Genuine Lennox OEM replacement part
Ensures efficient heat dissipation and system cooling
Designed for long-lasting, reliable performance
Compatible with select Lennox condenser units
Ideal for both residential and light commercial applications
Need help with compatibility? Contact us and we’ll ensure you get the right part for your system.
