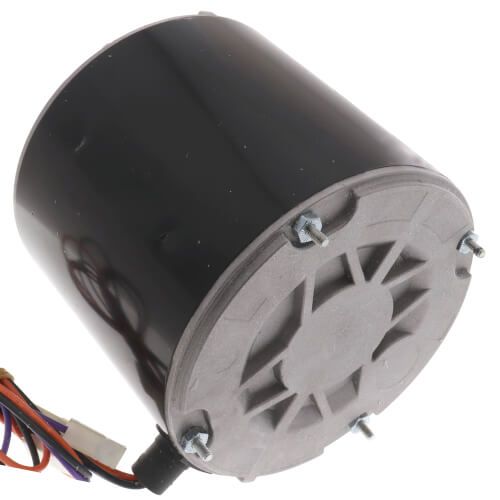

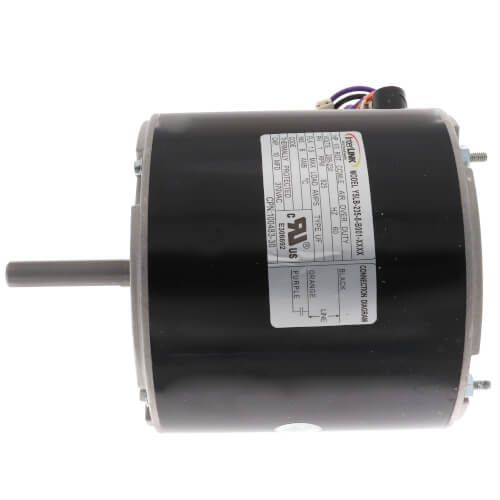

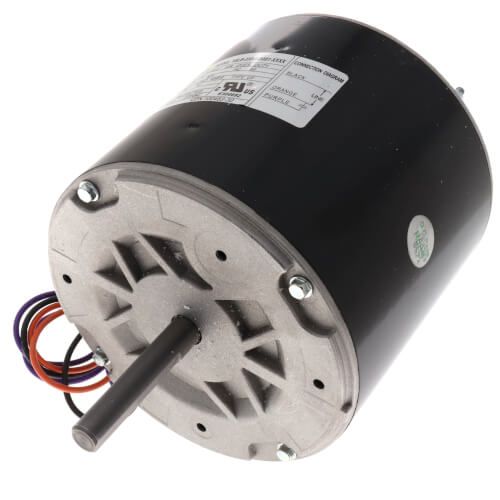

Lennox 69W97 ( 100483-30 ) - Condenser Fan Motor, 1/3 HP,208/230V-1Ph, 825 RPM, 100483-30
Lennox 69W97 ( 100483-30 ) - Condenser Fan Motor, 1/3 HP,208/230V-1Ph, 825 RPM, 100483-30
Material Description: 100483-30, Condenser Fan Motor, 1/3 HP,208-230/1, 825 RPM
Horsepower: 1/3 HP
Type: PSC
Gross Weight: 18 LB
Bearing Type: Ball
Phase: 1 Phase
Shaft Length: 2.5
Country of Origin: China
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/3 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Stud
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 2.5 IN
Capacitor Value: 10 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Ball
Lennox 69W97 (100483-30) - Condenser Fan Motor, 1/3 HP, 208/230V-1Ph, 825 RPM
Ensure optimal performance and efficiency in your Lennox HVAC system with the Lennox 69W97 condenser fan motor. This genuine OEM replacement part (part number 100483-30) delivers a reliable 1/3 HP at 825 RPM, designed for use with 208/230V single-phase systems. Built for durability and long-lasting operation, this motor supports consistent airflow and heat transfer within your condenser unit, helping to maintain proper system cooling performance.
Key Features:
- Motor Power: 1/3 HP
- Voltage: 208/230V, Single Phase
- Speed: 825 RPM
- OEM Part Number: 100483-30
- Application: Condenser fan motor for Lennox HVAC systems
Backed by Lennox engineering, the 69W97 motor is ideal for restoring system efficiency with minimal installation hassle. Perfect for technicians and contractors looking for reliable replacement components.
Order now from Beenimax.com – your trusted source for genuine Lennox parts.
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
