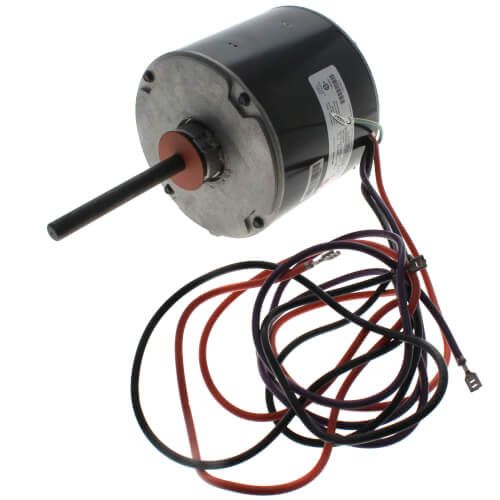

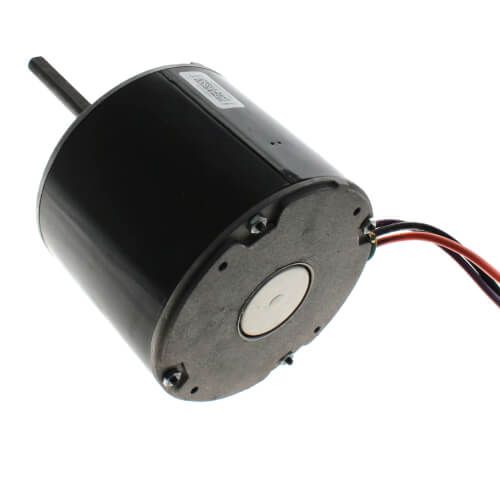

Lennox 72H36 - ( 72H3601 ) Condenser Fan Motor, 1/4 HP, 208-230 Volts, 825 RPM
Lennox 72H36 - ( 72H3601 ) Condenser Fan Motor, 1/4 HP, 208-230 Volts, 825 RPM
Brand Lennox
Catalog Number 72H36
Model/Part Number 72H3601
Base Unit of Measure
Unit(S)
Material Description: Nidec Motor 72H3601 Condenser Fan Motor, 1/4 HP, 208-230 Volts, 825 RPM
Product Height: 9.9 IN
Product Voltage: 208-230V
Horsepower: 1/4 HP
Type: PSC
Gross Weight: 16.2 LB
Amperage (AMPs): 1.72A
Bearing Type: Ball
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 5
Country of Origin: Mexico
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/4 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Belly Band
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 5 IN
Capacitor Value: 10 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Ball
Ensure efficient cooling system performance with the Lennox 72H36 (72H3601) Condenser Fan Motor. This high-quality OEM replacement motor is designed to provide reliable operation and long-lasting durability for Lennox air conditioning units. Engineered for optimal airflow and heat dissipation, the 72H36 motor helps maintain the proper function of your outdoor condenser unit, ensuring your HVAC system operates smoothly and efficiently even under heavy summer loads.
Key Features:
Genuine Lennox OEM part for guaranteed compatibility
Maintains proper airflow across the condenser coil
Enhances energy efficiency and system longevity
Built to withstand demanding outdoor conditions
Ideal for HVAC professionals and contractors, the Lennox 72H36 condenser fan motor is a dependable solution for system maintenance and repairs. Order with confidence from Beenimax.com—your trusted source for quality HVAC replacement parts.
