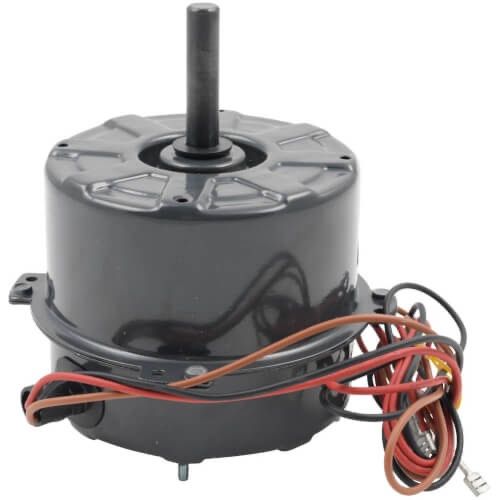

The Lennox 72L08 Condenser Fan Motor is a genuine OEM replacement designed for long-lasting performance in residential and light commercial HVAC systems. Rated at 1/5 HP and 208-230V, this motor ensures reliable operation in outdoor condensing units, helping maintain optimal system cooling efficiency. With a 1075 RPM single-speed configuration and 60 Hz frequency, it delivers consistent airflow and quiet performance.

Engineered to meet original Lennox specifications, the 72L08 motor features a 48Y frame size, CCW (counter-clockwise) rotation, and a sleeve bearing for smooth operation and dependable service life. It's a direct-fit replacement, ensuring easy installation with minimal system downtime.

Key Features:

Brand

Lennox

Catalog Number

72L08

Model/Part Number

20390806

Base Unit of Measure

Unit(S)

Material Description

20390806, Condenser Fan Motor, 1/5 HP, 208-230/1, 1075 RPM

EAN / UPC

66255134279

Horsepower

1/5 HP

Gross Weight

10.2 LB

Phase

1 Phase

Shaft Length

2

Country of Origin

Mexico

Core Product

No

Motor Type

PSC

RPM

1075 RPM

Motor HP

1/5 HP

Number of Speeds

1 Speed

Frame Size

42

Motor Mounting Position

Vertical

Motor Mounting Type

Stud

Motor Voltage

208-230 VAC 1 Ph 60 Hz

Shaft Size

1/2 x 2 IN

Capacitor Value

5 MFD 370 VAC

Rotation

CWLE

Bearing Type

Sleeve



Ideal for maintaining peak HVAC system performance, the Lennox 72L08 fan motor provides a cost-effective, factory-approved solution for your cooling needs.
