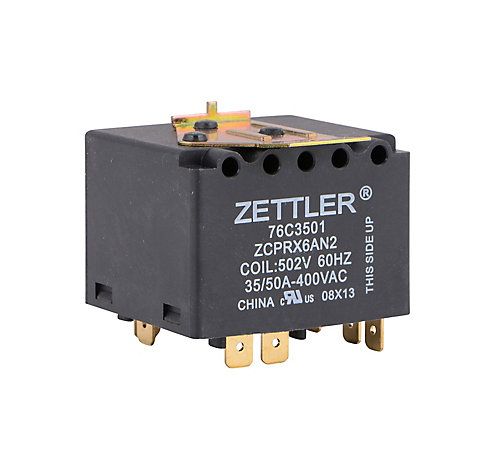

Lennox 76C35 - ( 76C3501 ) Potential Relay, SP N.C., 258-287 Volts Pickup, 60-135 Volts Dropout, 500 Volts Continuous Coil

Brand:
Reviews (0)
SKU
76C35
Lennox 76C35 - ( 76C3501 ) Potential Relay, SP N.C., 258-287 Volts Pickup, 60-135 Volts Dropout, 500 Volts Continuous Coil

Lennox 76C35 - ( 76C3501 ) Potential Relay, SP N.C., 258-287 Volts Pickup, 60-135 Volts Dropout, 500 Volts Continuous Coil

SKU
76C35
Brand:
Reviews (0)
$69.72
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Lennox 76C35 - (76C3501) Potential Relay, SP N.C., 258-287 Volts Pickup, 60-135 Volts Dropout, 500 Volts Continuous Coil

Ensure optimal compressor performance with the Lennox 76C35 Potential Relay. Designed for reliable motor starting applications, this single pole normally closed (SP N.C.) relay features a pickup voltage range of 258-287 volts and a dropout voltage range of 60-135 volts, supporting efficient switching operations during startup and shutdown cycles.

Key Features:
  • Application: Ideal for controlling start capacitors in HVAC compressor motors
  • Pickup Voltage: 258-287 Volts ensures precise engagement during startup
  • Dropout Voltage: 60-135 Volts for consistent and safe capacitor release
  • Continuous Coil Voltage: Rated for up to 500 Volts, providing robust durability under operational loads
  • Design: Single pole normally closed configuration enhances compatibility with various Lennox compressor models
  • OEM Quality: Genuine Lennox replacement part, ensuring proper fit and function within original equipment specifications
Typical Use:

This potential relay is commonly used in Lennox HVAC systems to facilitate the start-up sequence of compressor motors, especially where start capacitors are employed for torque boost. It ensures timely disengagement of the capacitor to protect both the motor and the electrical components.

Specifications:
  • Part Number: 76C35
  • Alternate Part Number: 76C3501
  • Pickup Voltage: 258-287 VAC
  • Dropout Voltage: 60-135 VAC
  • Continuous Coil Voltage Rating: 500 VAC
  • Configuration: SP N.C. (Single Pole, Normally Closed)
Why Choose Beenimax.com?
  • Fast nationwide shipping
  • Access to genuine Lennox replacement parts
  • Reliable customer support for your HVAC projects
  • Competitive pricing for contractors and homeowners alike
Ensure your system starts efficiently and runs reliably. Order the Lennox 76C35 Potential Relay today and keep your HVAC equipment performing at its best.

Available now on Beenimax.com
More Information
More Information
Package Quantity1 Item
Item ReturnsThis item can be returned
