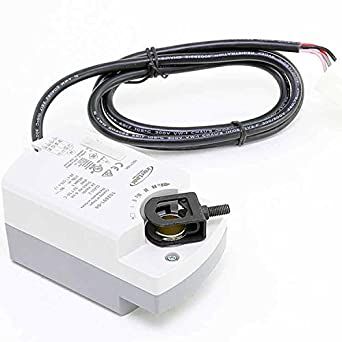

Lennox 77W93 - Damper Actuator Motor
OEM Part Number: 102691-04
Power Supply: 24 VAC or 24 VDC
OEM Part Number: 102691-04
Power Supply: 24 VAC or 24 VDC
The Lennox 77W93 Damper Actuator Motor is an essential component for HVAC zoning systems, engineered to provide precise control over airflow distribution in residential or light commercial applications. This motor is used to operate zone dampers, enabling dynamic control of temperature in individual zones, which helps improve comfort and reduce energy consumption.
Product Specifications:
- Model: 77W93
- Manufacturer Part Number: 102691-04
- Voltage Compatibility: 24 Volt AC or DC
- Control Type: On/Off or Floating control (system-dependent)
- Application: Controls Lennox zone dampers in multi-zone HVAC systems
- Rotation: Typically 90° (check damper specifications for exact range)
- Torque Output: Sufficient for residential damper blades (typical torque range: 35–50 in-lbs)
- Electrical Connection: Pre-wired or terminal block connection (varies by version)
- Mounting: Direct coupling or bracket-mount, depending on damper configuration
- Compatible Systems: Lennox Harmony zoning systems and other select models using 24V control
Features & Benefits:
- Designed to deliver smooth, quiet, and reliable damper operation
- Supports both AC and DC voltage control inputs
- Enhances HVAC efficiency by allowing independent zone control
- Reduces wear and tear on your HVAC equipment by avoiding over-conditioning
- Built to Lennox’s OEM standards for long-lasting performance
Common Applications:
- Lennox Harmony III Zoning Systems
- Residential HVAC systems with automated zone dampers
- Retrofit or replacement for failed actuator motors in compatible systems
Note: Always verify voltage and damper compatibility before installation. If you're unsure, contact a licensed HVAC professional or reach out to Beenimax.com customer support for guidance.
