Lennox X0280 Cerroset 614305000009 is a 50-foot standard insulated HVAC lineset designed for reliable refrigerant flow in residential and light commercial air conditioning systems. This line set features a 3/8 inch liquid line and 7/8 inch suction line with 3/4 inch thick black insulation for enhanced thermal efficiency, reduced condensation, and long-term durability. The plain end copper tubing allows for easy field brazing and custom installation. Ideal for new system installations or replacements, this OEM-quality insulated line set ensures dependable performance and professional-grade results.

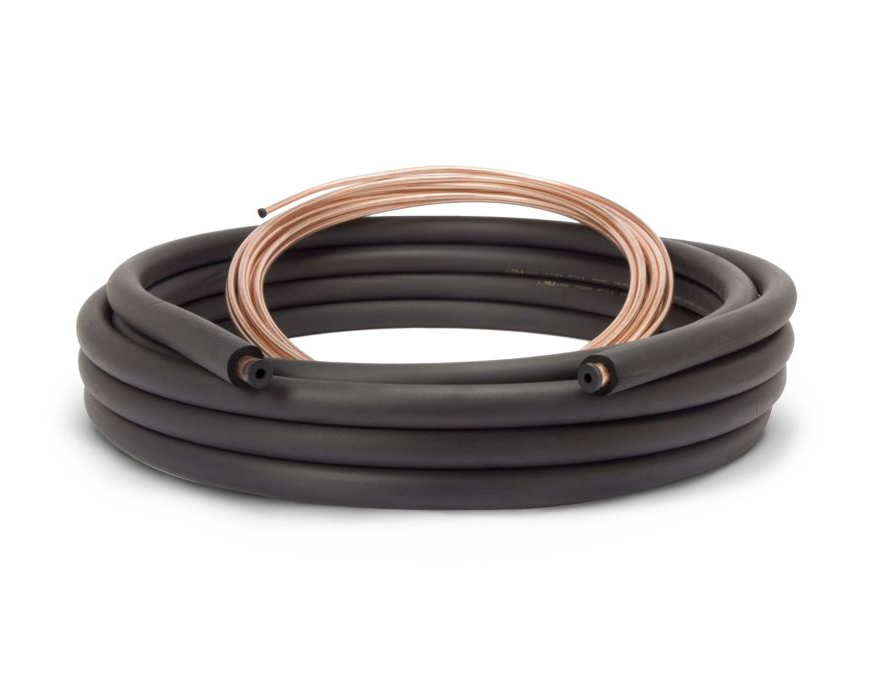

Lennox X0280 Cerroset 614305000009 50 Ft Insulated Lineset 3/8" x 7/8" with 3/4" Insulation, Plain End, Black
Lennox X0280 Cerroset 614305000009 50 Ft Insulated Lineset 3/8" x 7/8" with 3/4" Insulation, Plain End, Black
Cerro X0280 (Model 614305000009) is a 50-foot standard insulated HVAC lineset designed for professional air conditioning and heat pump installations. This Cerroset Series 614 line set features a 3/8 inch liquid line and 7/8 inch suction line with 3/4 inch thick closed-cell elastomeric rubber insulation, delivering an R-Value of 5.2 for improved thermal efficiency and condensation control.
Manufactured with continuous copper tubing and factory-applied black elastomeric insulation, this lineset provides superior moisture resistance, flexibility, and long-term durability in residential and light commercial HVAC applications. The plain end connection allows for field brazing and custom installation to match system requirements.
Product Specifications:
Brand: Cerro
Catalog Number: X0280
Model/Part Number: 614305000009
Series: 614
Type: Standard Insulated Lineset
Liquid Line OD: 3/8 Inch
Suction Line OD: 7/8 Inch
Insulation Thickness: 3/4 Inch
Insulation Material: Rubber Elastomeric (Closed-Cell)
R-Value: 5.2
Length: 50 Foot
Connection Type: Plain End
Color: Black
Gross Weight: 31 lb
EAN / UPC: 66255142283
Base Unit of Measure: Unit(S)
Core Product: Yes
This 3/8 x 7/8 insulated copper line set is ideal for new installations or replacement HVAC refrigerant line applications where reliable performance, moisture protection, and energy efficiency are critical.
Optimized for search terms: 3/8 x 7/8 insulated lineset 50 ft, Cerro 614305000009 line set, HVAC copper refrigerant line set with 3/4 insulation, standard insulated AC line set black.
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
