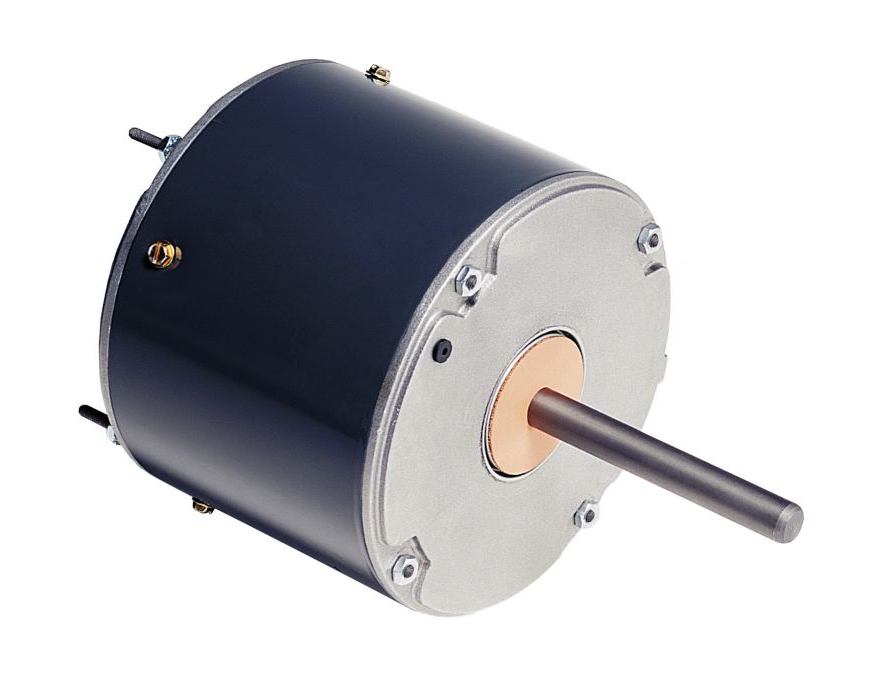

Lennox Y8775 is a US Motors (Nidec) model 3322 permanent split capacitor condenser fan motor engineered for dependable performance in residential and light commercial HVAC condenser units. This single-speed PSC motor operates at 203–230 volts, 1 phase, 60 Hz and delivers a consistent 1075 RPM output with selectable 1/3–1/6 HP capacity, making it a versatile replacement option across multiple systems.

The motor features a 5.6 inch diameter, frame size 48 construction with a totally enclosed air over (TEAO) design to protect internal components in outdoor environments. It is built for vertical mounting using a stud or belly band mount and includes extended studs, a hubless lead end, and 30 inch motor leads for easier installation. Reversible rotation allows flexibility during replacement, while the automatic reset thermal overload protector helps prevent damage from overheating during continuous duty operation.

Designed for demanding HVAC applications, the Y8775 uses sleeve bearings with an all-angle thrust system and Class B insulation, rated for operation in ambient temperatures up to 140°F (60°C). It is compatible with 370V capacitors and requires a 10 MFD capacitor (not included). Drain holes on both ends enhance moisture management, contributing to long service life and reliable condenser airflow performance.

This motor is an OEM-quality replacement solution for condenser fan applications where durability, efficiency, and consistent airflow are critical.
