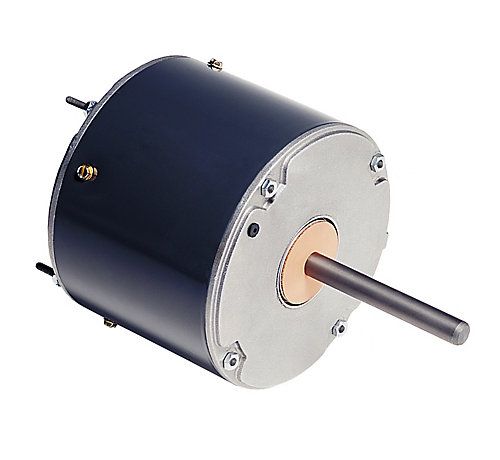

Lennox Y8776 - ( 3323 ) Condenser Fan Motor, Multi-Horsepower, 1/3-1/6 HP, 208/230V-1Ph, 1075 RPM, US Motors 3323 EZ-FIT

Brand:
Reviews (0)
SKU
Y8776
Lennox Y8776 - ( 3323 ) Condenser Fan Motor, Multi-Horsepower, 1/3-1/6 HP, 208/230V-1Ph, 1075 RPM, US Motors 3323 EZ-FIT

Lennox Y8776 - ( 3323 ) Condenser Fan Motor, Multi-Horsepower, 1/3-1/6 HP, 208/230V-1Ph, 1075 RPM, US Motors 3323 EZ-FIT

SKU
Y8776
Brand:
Reviews (0)
$176.80
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Catalog Number: Y8776
Model/Part Number: 3323
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(S)
Material Description: US Motors 3323 EZ-FIT PSC Condenser Motor, 1 Speed, 1/3-1/6 HP, 203-230/1, 1075 RPM, TEAO
Product Height: 9.1 IN
Horsepower: 1/3 HP
Diameter: 5.6 IN
Gross Weight: 14 LB
Family: EZ-FIT
Amperage (AMPs): 2A
Bearing Type: Ball
Hertz: 60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/3-1/6 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Stud/Belly Band
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 5 IN
Capacitor Value: 7 MFD 370 VAC
Rotation: Reversible
Bearing Type: Ball
