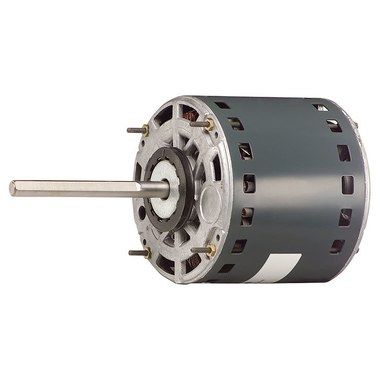

Mars 03466 - 5KCP39SGU363S 3/4HP 1075RPM115

Brand:
Reviews (0)
SKU
03466
Mars 03466 - 5KCP39SGU363S 3/4HP 1075RPM115

Mars 03466 - 5KCP39SGU363S 3/4HP 1075RPM115

SKU
03466
Brand:
Reviews (0)
$376.13
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

No. of Poles: 6
Motor Type: PSC
Enclosure: OAO
HP (Max.): 3/4-1/5
Voltage: 115
Mounting: Belly Band/Extended Studs/Holes in Shelll
Speeds: 4
Hz: 60
Rotation: REV
Multi-Rated HP: 3/4-1/5
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: UR/CSA
FLA: 7.9
Bearing: Ball
Lead Length (in.): 38
Thermal Protection: Yes
Ambient Deg C: 40
Ins. Class: B
Shaft Dia. (in.): 1/2 w/Double Flat
Capacitor Included: No
Shaft Length (in.): 5.0
Capacitor Rating: 20/370
Service Factor: 1.0
Duty: Continuous
Brand: Regal
Pack Qty: 1
Length: 14.60 in.
Width: 6.90 in.
Height: 7.50 in.
Weight: 19.6000 lbs
Harmonized Tariff Code: 8501403040
