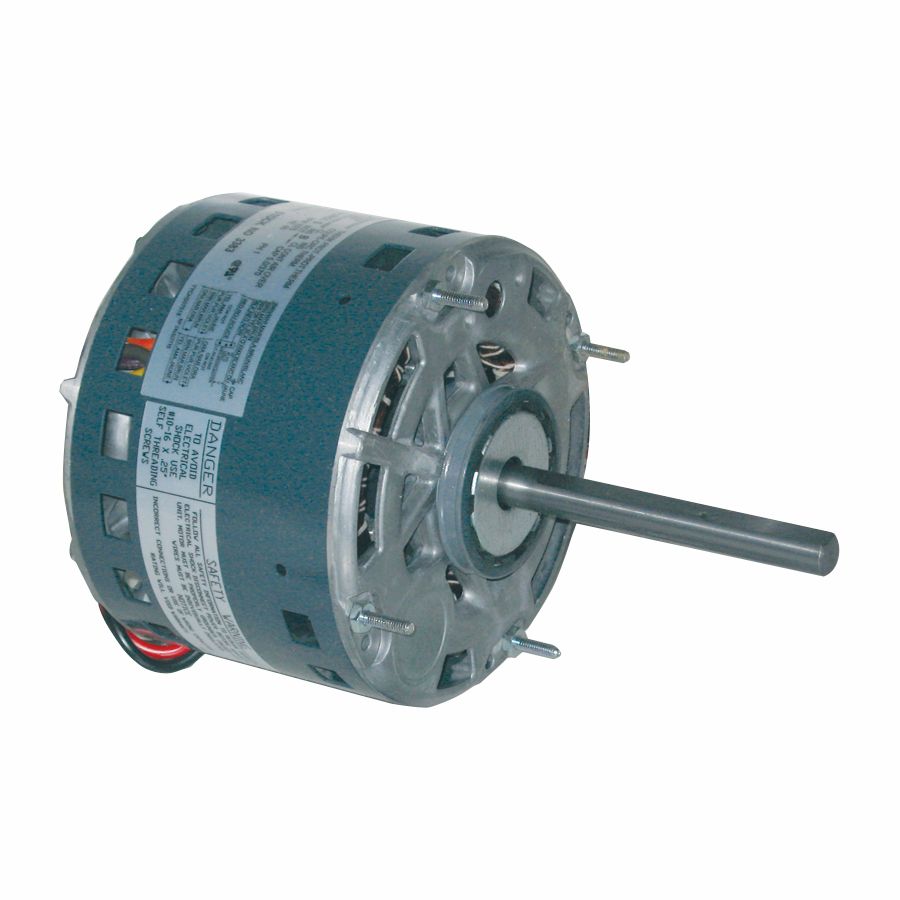

Mars 03583 - 1/4HP 115V 1075RPM REV ROT

Brand:
Reviews (0)
SKU
03583
Mars 03583 - 1/4HP 115V 1075RPM REV ROT

Mars 03583 - 1/4HP 115V 1075RPM REV ROT

SKU
03583
Brand:
Reviews (0)
$298.59
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

No. of Poles: 6
Motor Type: PSC
Enclosure: OAO
HP (Max.): 1/4
Voltage: 115
Mounting: Resilient Ring Mounting,/Belly Band
Speeds: 3
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: UR/CSA
FLA: 4.2
Bearing: Sleeve
Lead Length (in.): 26
Thermal Protection: Yes
Ambient Deg C: 40
Ins. Class: B
Shaft Dia. (in.): 1/2 w/Flat
Capacitor Included: No
Shaft Length (in.): 4.0
Capacitor Rating: 5/370
Service Factor: 1.0
Duty: Continuous
Brand: Regal
Pack Qty: 1
Case Qty: 1
Pallet Qty: 80
Length: 14.00 in.
Width: 6.80 in.
Height: 7.00 in.
Weight: 11.1000 lbs
Harmonized Tariff Code: 8501403040
