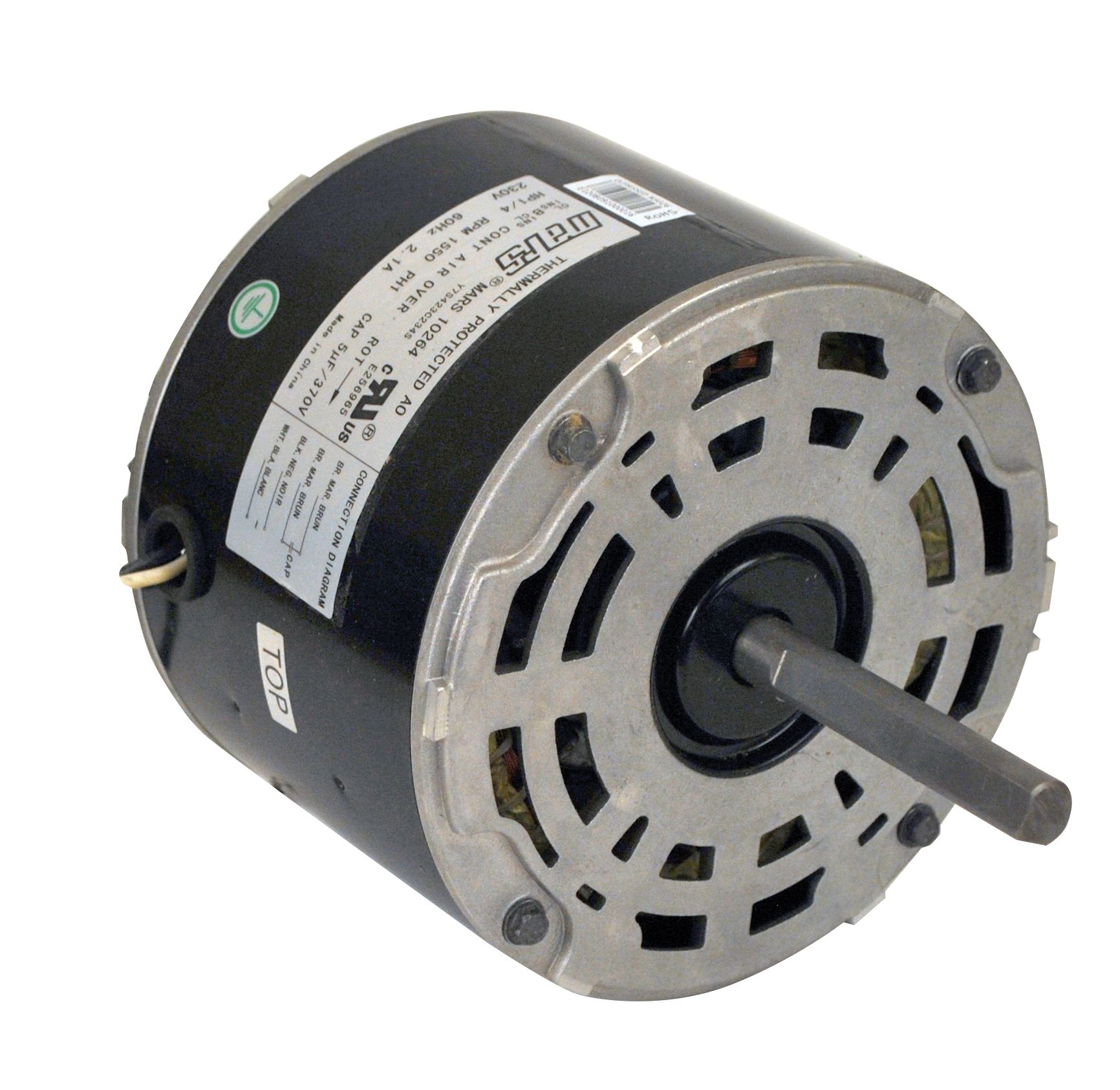

Mars 10264 - 1/4HP 230V 1550 RPM

Brand:
Reviews (0)
SKU
10264
Mars 10264 - 1/4HP 230V 1550 RPM

Mars 10264 - 1/4HP 230V 1550 RPM

SKU
10264
Brand:
Reviews (0)
$118.36
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

No. of Poles: 4
Motor Type: PSC
Enclosure: OAO
HP (Max.): 1/4
Voltage: 230
Mounting: Thru Bolt/Belly Band Bracket
Speeds: 1
Hz: 60/50
Rotation: CW
RPM Range: 1550
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 2.1
Bearing: Sleeve
Lead Length (in.):33
Thermal Protection: Auto
Ambient Deg C: 60
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 3
Capacitor Rating: 5/370
Replaces: 050-0238-00, 5KCP39GG357S, 6124, K55BZY1439
Service Factor: 1.0
Duty: Continuous
Brand: MARS

Weight: 11.4500 lbs
Harmonized Tariff Code: 8501404040
