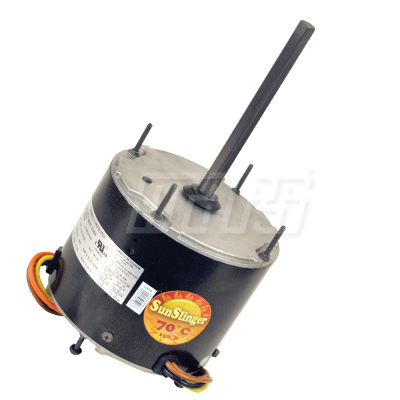

Mars 20746 - 1/2HP 208-230V 825 70C CF MTR

Brand:
Reviews (0)
SKU
20746
Mars 20746 - 1/2HP 208-230V 825 70C CF MTR

Mars 20746 - 1/2HP 208-230V 825 70C CF MTR

SKU
20746
Brand:
Reviews (0)
$144.32
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

No. of Poles: 8
Motor Type: PSC
Enclosure: TEAO
HP (Max.): 1/2
Voltage: 208-230
Mounting: Belly Band, Extended Clampbolts
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 825
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 2.8
Bearing: Ball
Lead Length (in.): 36
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 7
Capacitor Rating: 12.5/370
Service Factor: 1.0
Duty: Continuous
