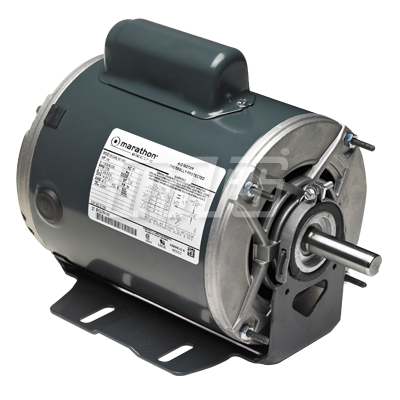

Mars B318 - 3/4,1725,56,1/60/115/208-230

Brand:
Reviews (0)
SKU
B318
Mars B318 - 3/4,1725,56,1/60/115/208-230

Mars B318 - 3/4,1725,56,1/60/115/208-230

SKU
B318
Brand:
Reviews (0)
$442.69
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

No. of Poles: 4
Motor Type: Capacitor Start Induction Run
Enclosure: Drip Proof
HP (Max.): 3/4
Voltage: 115/208-230
Mounting: Resilient Base/Extended Studs
Speeds: 1
Hz: 60
Rotation: Selective CCW
RPM Range: 1725
NEMA Frame Size: 56
Phase: Single
Standards: UL/CSA
FLA: 10.0/5.0
Bearing: Ball
Thermal Protection: Auto
Ambient Deg C: 40
NOTE: Horizontal Motor Orientation
Ins. Class: B
Shaft Dia. (in.): 5/8
Capacitor Included: Yes
Shaft Length (in.): 1.88
Service Factor: 1.25
Duty: Continuous
Weight: 22.6000 lbs
Harmonized Tariff Code: 8501403040
