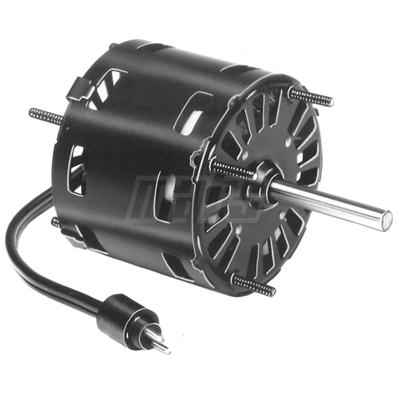

Mars D1103 - 3.3",1/20HP,208-230V,1500RPM

Brand:
Reviews (0)
SKU
D1103
Mars D1103 - 3.3",1/20HP,208-230V,1500RPM

Mars D1103 - 3.3",1/20HP,208-230V,1500RPM

SKU
D1103
Brand:
Reviews (0)
$186.20
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

No. of Poles: 4
Motor Type: Shaded Pole
Enclosure: OAO
HP (Max.): 1/20
Voltage: 208-230
Mounting: Extended Studs
Speeds: 1
Hz: 60
Rotation: CCW SE
RPM Range: 1500
NEMA Frame Size: 3.3
Phase: Single
Standards: UR/CSA
FLA: 1.15/1.35
Bearing: Sleeve
Lead Length (in.): 14
Thermal Protection: Thermally
Ambient Deg C: 40
Ins. Class: B
Shaft Dia. (in.): 5/16
Shaft Length (in.): 2.25
Replaces: Fasco No. 7163-3371, 252-1195
Service Factor: 1.0
Duty: Air Over
Weight: 3.0000 lbs
Harmonized Tariff Code: 8501106020
