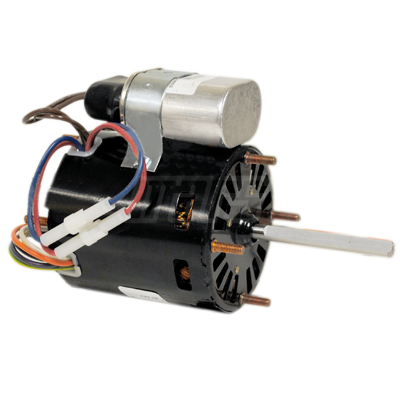

Mars D1127 - 3.3",1/12-1/15-1/20HP,115/230V

Brand:
Reviews (0)
SKU
D1127
Mars D1127 - 3.3",1/12-1/15-1/20HP,115/230V

Mars D1127 - 3.3",1/12-1/15-1/20HP,115/230V

SKU
D1127
Brand:
Reviews (0)
$158.75
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

No. of Poles: 4
Motor Type: PSC
Enclosure: OAO
HP (Max.): 1/12
Voltage: 115/230
Mounting: Extended Studs Shaft End
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 1550
NEMA Frame Size: 3.3
Phase: Single
Standards: UR/CSA
FLA: 1.1/0.6
Bearing: Sleeve
Lead Length (in.): 20
Thermal Protection: Thermally
Ambient Deg C: 40
Ins. Class: B
Shaft Dia. (in.): 5/16
Capacitor Included: Yes
Shaft Length (in.): 3.06
Capacitor Rating: 7.5/370
Service Factor: 1.0
Duty: Air Over
Weight: 4.2000 lbs
Harmonized Tariff Code: 8501402040
