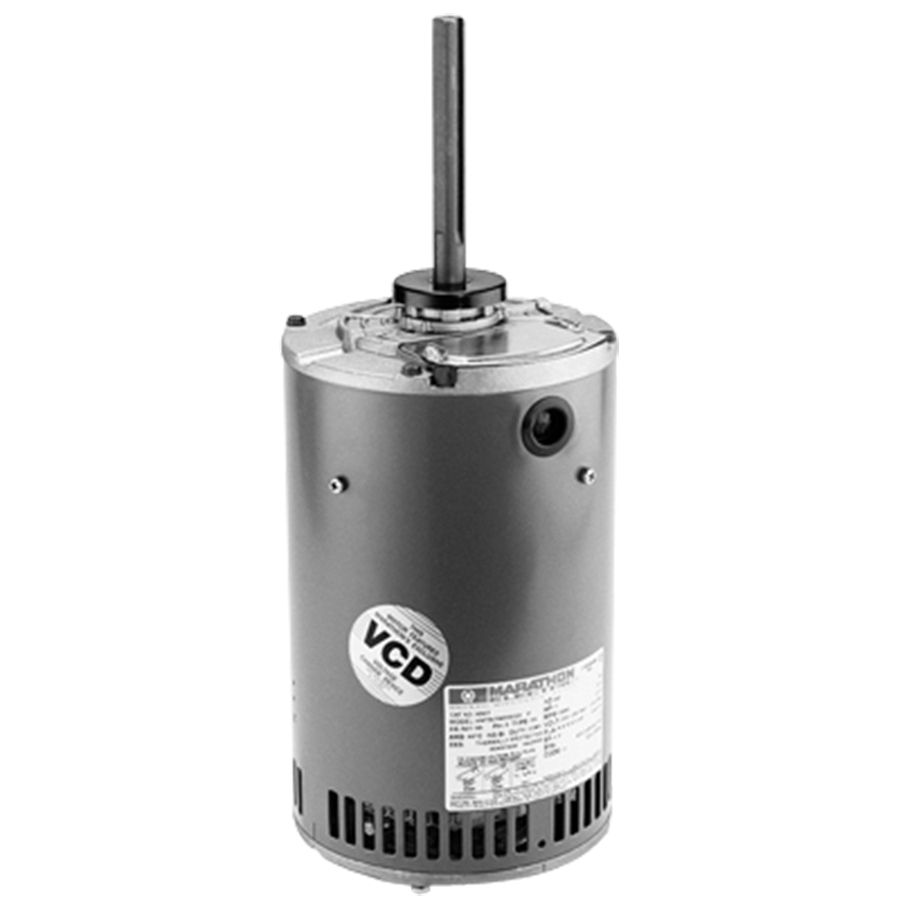

Mars X507 - 1,850,56Y,3/60/208-230/460

Mars X507 - 1,850,56Y,3/60/208-230/460

SKU
X507
Brand:
Reviews (0)
$777.42
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

No. of Poles: 8
Motor Type: Squirrel Cage Induction Run
Enclosure: OPAO
HP (Max.): 1 3/4
Voltage: 200-230/460
Mounting: Round Belly Band
Speeds: 1
Hz: 50/60
Rotation: REV
RPM Range: 850/710
NEMA Frame Size: 56Y
Phase: Three
Standards: UR/CSA
FLA: 5.3-5.3/2.65 & 4.6/2.3
Bearing: Ball
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: H
Shaft Dia. (in.): 5/8
Shaft Length (in.): 5.06
Service Factor: 1.0 & 1.0
Duty: Continuous
Weight: 45.5500 lbs
Harmonized Tariff Code: 8501524000
