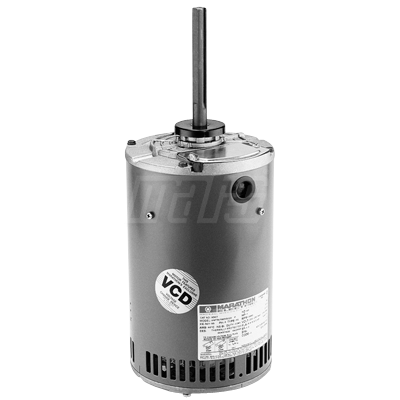

Mars X509 - 2,1140,56Y,3/60/208-230/460

Brand:
Reviews (0)
SKU
X509
Mars X509 - 2,1140,56Y,3/60/208-230/460

Mars X509 - 2,1140,56Y,3/60/208-230/460

SKU
X509
Brand:
Reviews (0)
$681.49
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

No. of Poles: 6
Motor Type: Squirrel Cage Induction Run
Enclosure: OPAO
HP (Max.): 2
Voltage: 208-230/460
Mounting: Round Belly Band
Speeds: 1
Hz: 50/60
Rotation: REV
RPM Range: 1140/950
NEMA Frame Size: 56Y
Phase: Three
Standards: UR/CSA
FLA: 7.2-6.8/3.4 & 6.6/3.3
Bearing: Ball
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: H
Shaft Dia. (in.): 5/8
Shaft Length (in.): 5.06
Service Factor: 1.0 & 1.0
Duty: Continuous
Weight: 45.3500 lbs
Harmonized Tariff Code: 8501524000
