Nu-Calgon 4603-0 / No. 31-TX1 Acid Pump — Reliable Chemical Circulation Solution

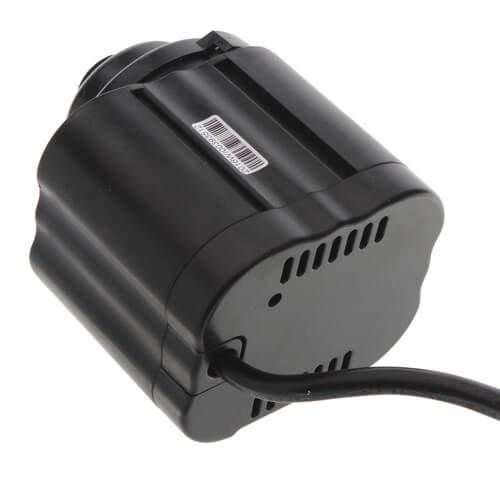

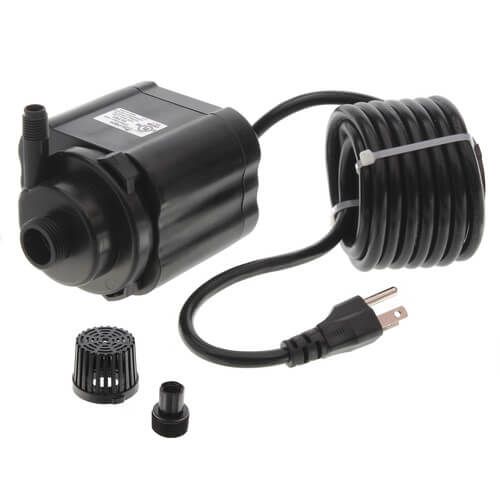

The Nu-Calgon No. 31-TX1 Acid Pump (4603-0) is a compact, submersible pump designed specifically for circulating strong acid cleaning solutions in HVAC and industrial applications. Its acid-resistant construction and thermal protection make it ideal for safely handling harsh chemicals during scale removal and condenser cleaning.
Key Features
- Corrosion-Resistant Build: All wetted components are made from acid-resistant materials to ensure long service life and chemical durability.
- Thermally Protected Motor: Automatically shuts off if internal temperature exceeds 140 °F to prevent overheating and extend motor life.
- Compact & Portable: Lightweight, submersible design fits easily into tanks and tight work areas for versatile use.
- Standard 120 VAC Operation: Connects to any standard power source—no special wiring required.
- Long 16-Foot Power Cord: Provides extended reach and flexibility during operation.
- Purpose-Built for Acid Cleaning Systems: Handles hydrochloric, sulfamic, and other strong acid solutions used for descaling heat exchangers, condensers, coils, and water-cooled systems.
Technical Specifications
| Model / Part Number | 4603-0 / No. 31-TX1 |
| Type | Submersible acid pump |
| Voltage | 120 VAC (60 Hz) |
| Protection | Thermal overload shut-off (~140 °F) |
| Cord Length | 16 ft |
| Wetted Materials | Acid-resistant plastics and metals |
| Weight | Approximately 4.3 lb (1.95 kg) |
| Dimensions (Box) | 8.5 in L × 4.6 in W × 4.1 in H |
| Dimensions (Product) | 7 in L × 6 in W × 4.5 in H |
Typical Applications
- Descaling heat exchangers and condensers
- Circulating acid solutions through chillers and coils
- Chemical cleaning of industrial equipment
- Routine maintenance for HVAC water-cooled systems
Why Choose Nu-Calgon 31-TX1
This pump is trusted by professionals for its proven durability, reliability, and ease of use. Its chemical-resistant construction and thermal protection make it a safe, long-lasting solution for technicians handling corrosive cleaning solutions.
